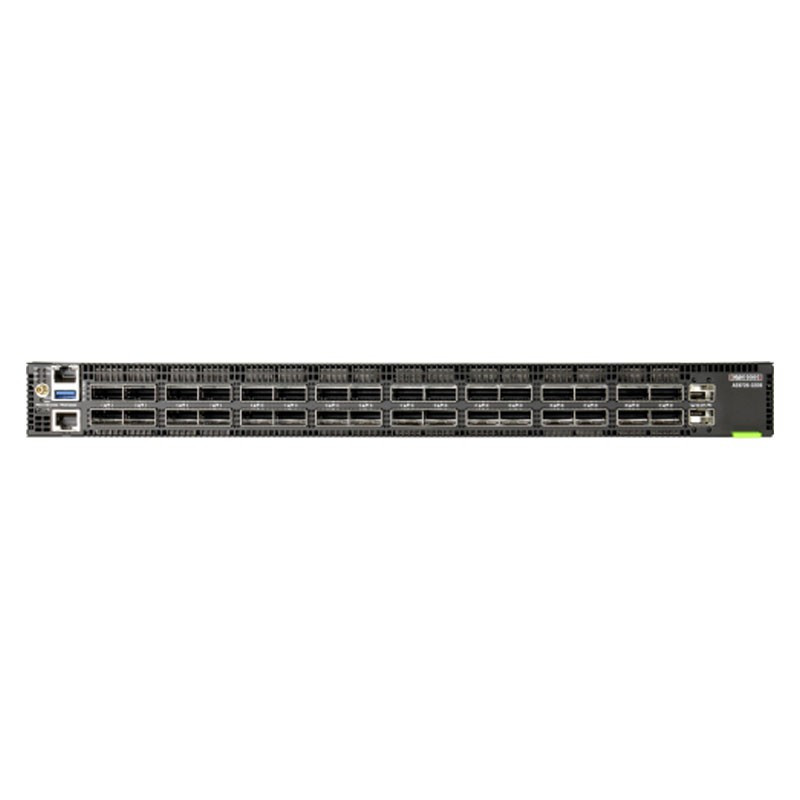

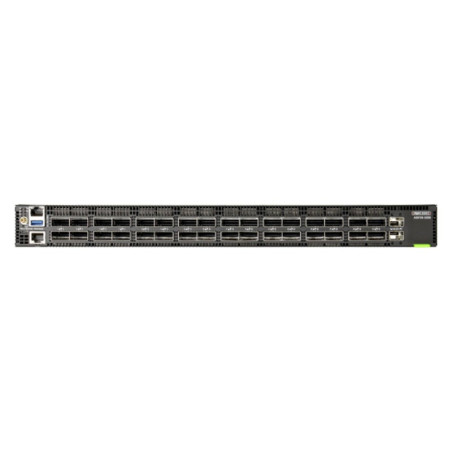

سويتش مركز البيانات DCS240 مع 32 منفذ 400 جيجا ماركة Edgecore

Key Features and Benefits

• Cost-effective, open network switch for data center fabric.
• QSFP56-DD switch ports, each supporting 1 x 400 GbE, or via breakout cables 2 x 200G GbE or 4 x 100 GbE.

Upper 16 ports support up to 24 W per transceiver.

Lower 16 ports support up to 14 W per transceiver.

• Incorporates Broadcom Trident 4 switch series silicon for non-blocking line-rate performance.
• 1 RU form factor.
• Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.
• All ports on front; PSUs and fans accessible from rear.
• Hot-swappable, load-sharing, redundant 1500 W PSUs.
• 5+1 redundant, hot-swappable fan modules.
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.

Interfaces

Models

Ports

Switch Ports: 32 x QSFP56-DD 400 GbE Power Budget: 24 W on upper 16 ports, 14 W on lower 16 ports

Management Ports on Port Side:

1 x RJ-45 serial console

1 x Micro USB console port

• Note: When both console ports are connected, only one is active. The Micro USB port has a higher priority.

1 x RJ-45 1000BASE-T management

2 x SFP+ 10G management

1 x USB 3.0 storage port

Supported Transceivers and Cables:

40GBASE-SR4/LR4

40G-DAC Cable

100GBASE-SR4/CWDM4/LR4

100G-DAC/AOC Cable

400GBASE-FR4/ZR

400G-DAC/AOC Cable

Key Componets

Switch Silicon: BCM56880 Trident 4 12.8 Tb/s

CPU Modules:

 Processor: Intel® Pentium® Processor D1519 4-cores 1.5 GHz

 SPI Flash: 32MB x 2

 Memory: DDR4 SO-DIMM 8GB x 2 with ECC support

 Storage: m.2 NVMe SSD 64GB x 1 MLC

Performance

Switching Capability: 12.8 Tbps

Forwarding Rate: 5.4 Bpps

Jumbo frames support up to 9416 bytes

Packet Buffer Size: 132 MB SmartBuffer

MAC Addresses: max. 384K

Physical and Environmental

Dimensions (WxDxH): 43.84 x 59 x 4.35 cm (17.26 x 23.23 x 1.71 in.)

Weight: 11.85 kg (26.12 lb), with 2 PSUs and 6 fans installed

Fans: Hot-swappable 5 + 1 redundant fans

Storage Temperature: -40°C to 70°C ( -40°F to 158°F)

Operating Temperature:

 (FtoB): 0°C ~ 45°C (32°F ~ 113°F)

 (BtoF): 0° C ~ 35° C (32°F to 95°F)

Operating Humidity: 5% ~ 95% non-condensing

Soſtware

Switch is loaded with Open Network Install Environment (ONIE)

 soſtware installer

Compatible with the following NOS options: open source options, plus commercial NOS offerings.

Power

PSUs: 2 redundant, load-sharing, hot-swappable AC

AC input ranges:

 100-180VAC at 50-60Hz (1000 W max.)*

 200-240VAC at 50-60Hz (1500 W max.)

 *200-240VAC may be required for power redundancy under full loading.

 AC Inlet: IEC 60320 C14

Power Consumption

 Min. (w/o transceivers): 396 W@100VAC/386 W@240VAC

 Max. (w/o transceivers): 714 W@100VAC/653 W@240VAC

Regulatory

Emissions:

 EN 55032:2015+AC:2016, Class A

 EN 61000-3-2:2014, Class A

 EN 61000-3-3:2013

 FCC Class A

Immunity:

 EN 55035:2017

 EN 55024:2010+A1:2015

 IEC 61000-4-2/3/4/5/6/8/11

Safety:

 UL (CSA 22.2 No 62368-1 & UL62368-1)

 CB (IEC/EN60950-1 & IEC/EN 62368-1)

Environmental:

 GR63-CORE (Pre-test)

RoHS-2.0 Compliant

Electrical and Electronic Equipment (WEEE Directive 2002/96/EC)
