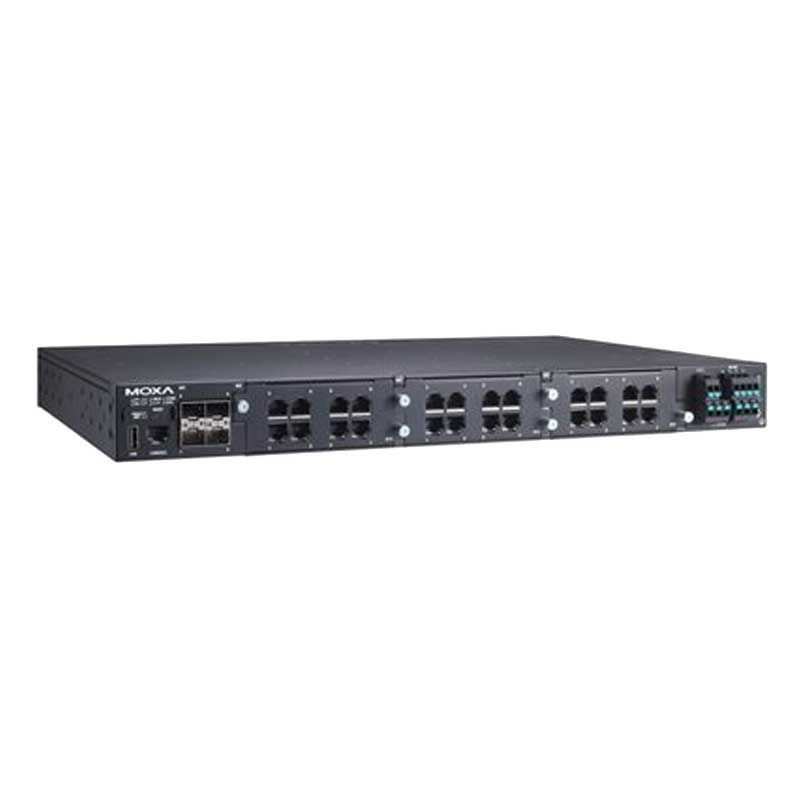

The RKS-G4028 Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as power substation automation systems (IEC 61850-3, IEEE 1613), railway applications (EN 50121-4), and factory automation systems. The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on wiring costs.

The modular design of the RKS-G4028 Series also makes network planning easy, and allows greater flexibility by letting you install up to 28 Gigabit ports with various connector types.

Additional Features and Benefits

    Layer 3 switching functionality to move data and information across networks (L3 models only)
    IEEE 1588v2 PTP (Precision Time Protocol) for network time synchronization
    Command line interface (CLI) for quickly configuring major managed functions
    IGMP snooping and GMRP for filtering multicast traffic
    Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
    QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
    IEEE 802.3ad, LACP for optimum bandwidth utilization
    Line-swap fast recovery
    TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
    SNMPv1/v2c/v3 for different levels of network management
    RMON for proactive and efficient network monitoring
    Bandwidth management prevents unpredictable network status with “Lock port” to restrict access to authorized MAC addresses
    Port mirroring for online debugging
    Automatic warning by exception through email and relay output
    Automatic recovery of connected device’s IP addresses
    Configurable by web browser, Telnet/serial console, CLI, Windows utility, and ABC-02-USB automatic backup configurator
