Designed and tested for military applications, the model DQBPU uses PowerCommand Control and offers significant operational advantages for all military services. It can run on multiple fuels (JP-8, JP-5, Jet A, DF 1,2), operate in wide temperature range and delivers excellent power quality. DQBPU is an integrated power options in a mobile configuration, with reliable and stable power.

Enclosure

• Aluminum: highly resistant to corrosion in common environments
• Access doors located for easy performance of scheduled maintenance
• Quick conversion from storage configuration to operating configuration
• Protection against severe environmental damage while in storage

Model DQBPU features

Designed and tested for military applications, the model DQBPU uses military Power Command Control and offers significant operational advantages for all military services.

• 60/50 Hz, 2400/4160 / 2200/3800 volts, 3 phase, 4 wire

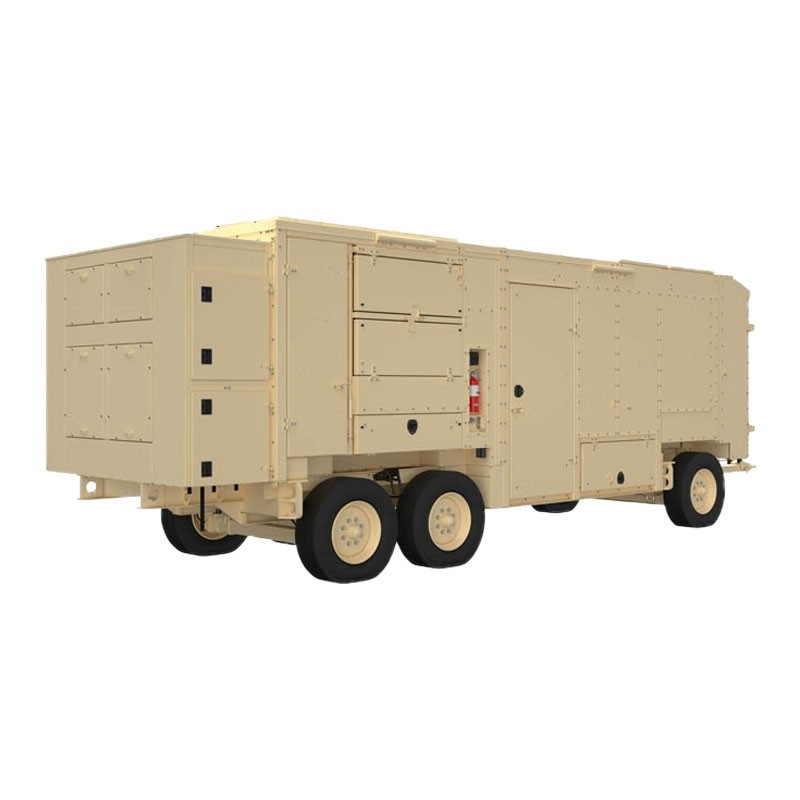

• 800 kW prime power trailer-mounted diesel-fueled generator
• JP-8 primary, DF1, 2, JP5 and Jet A
• Operating temperature range: –40°F to 160°F
• Excellent Power Quality Type II Utility (Class 2A) MIL-STD 1332B
• EMC radiated emission and susceptibility per MIL-STD 461F
• Sound-attenuated 84 dBA @ 7 meters
• Remote annunciator
• Paralleling ready (auto/manual)
• Operation altitude of 400 feet; above 400 feet with derate

Switchgear

• Aluminum enclosure
• Fixed-mount circuit breaker (24VDC open/ close, 120VAC motor charging)
• Surge capacitors and lightning arrestors
• All connections (power and discrete signals) made through multi-pin connectors

Control

• Designed and tested for military applications military Power Command Control
• High-quality color VGA (640x480) display
• Readable in sunlight
• Ergonomic buttons and switches designed for operation with MOPP gear and arctic mittens
• Night-vision compatible with adjustable green backlighting
• Remote operation via USB/RS-485 converter
• Comprehensive diagnostics set
• Fault and warning indications easily visible on both VGA display and fault annunciator panel capable of simultaneously illuminating 15 indicator lamps
• Fully integrated digital voltage regulation
• Three-phase bus and generator voltage metering
• Three-phase current metering
• Integrated generator circuit-breaker control
• Frequency selection with automatic voltage configuration
• Ruggedized MPCC designed to survive in extreme environments
• Supports wide temperature range
• Resistant to salt-fog, rain, ice, sand, dust and fungus
