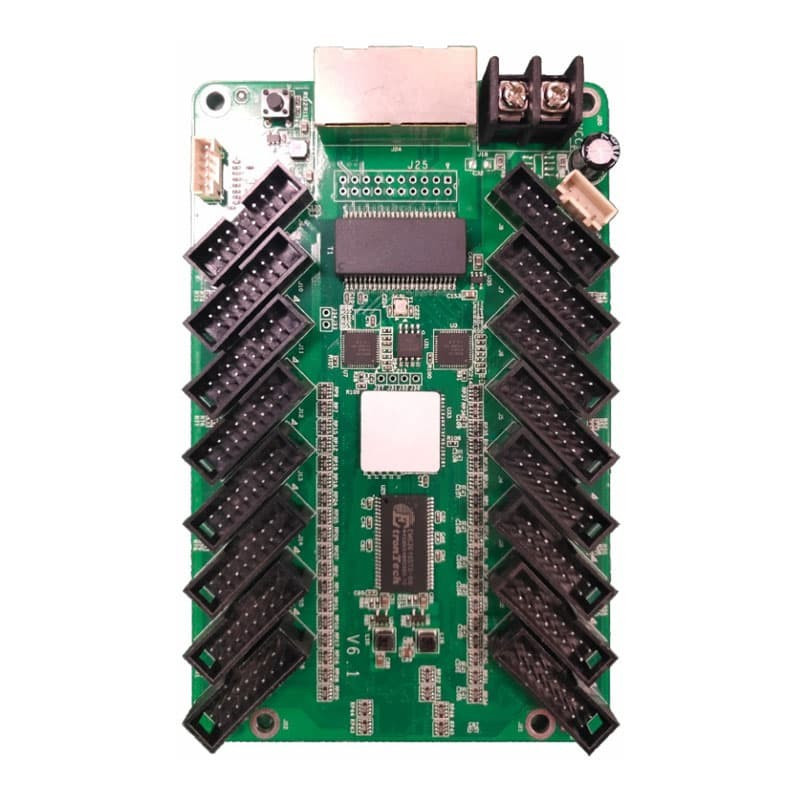

بطاقة استقبال جدار الفيديو TV-81R75E من العلامة التجارية ITC

Specifications:

Features:

• Integrated HUB75, no need for adapter plate, more convenient and lower cost.
• Reduce connectors, reduce fault points and lower failure rate.
• Support conventional chips to achieve high refresh, high gray scale and high brightness.
• A new grayscale engine, with better performance in low grayscale.
• More perfect details, can eliminate the unit plate design caused by a row of dark, low gray red, ghost and other details.
• Support 14BIT precision point by point correction.
• Support all conventional chips, PWM chips and lighting chips.
• Support static screen, between 1/2 to 1/32 scan any scan type.
• Support arbitrary point, support data migration, can easily achieve a variety of different screen, spherical screen, creative display screen.
• Single card supports 32 groups of RGB signal output.
• Super large carrying area is supported.
• Advanced design, high quality components, automatic high and low temperature aging test, zero failure delivery.
• Support DC 3.3V ~ 6V ultra-wide working voltage to effectively reduce the impact of voltage fluctuation.
• Support power reverse connection protection circuit.
