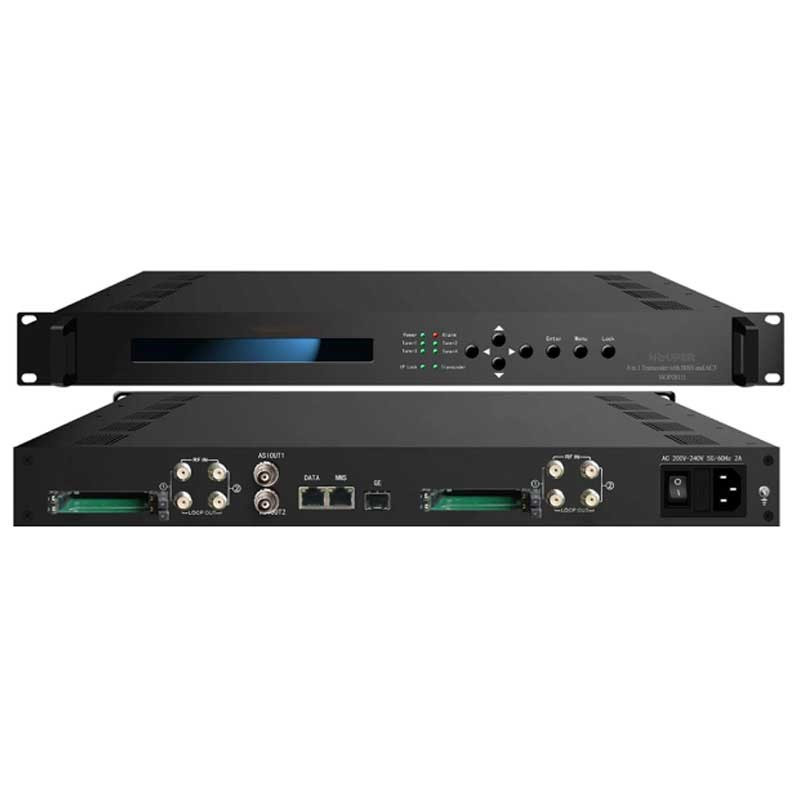

HOP28111 محول التشفیر الاحترافي

This trans-coder supports advanced multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.
BISS function is now embedded to descramble your tuner input programs and CC function as well to transport your closed caption (or teletext).
CC function has been embedded to transport your closed caption (or teletext).
It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.

Features:

Support 8*IP (SPTS/MPTS) input plus 4*tuners input with 4 CAM/CI slots
Support 8*SPTS & 1*MPTS (UDP/RTP) output; 1 ASI output
Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any
Audio Trans-coding: LC-AAC, MP2 and AC3 any-to-any or pass-through;
Support maximal 8 SD or 4 HD programs trans-coding
Support maximal 8 channel audio trans-coding
Support HD and SD resolutions
Support CBR and VBR rate control
Support CC (closed caption)
Support BISS descrambling
Support IP out with null packet filtered
Advanced de-multiplexing
LCD & Key board local control; web-based NMS management

Stream In
MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/SFP interface
4 * (DVB-S/S2/C/T/ISDB-T/ATSC Optional) Tuners

BISS Descramble
8 programs

Stream Out
8*SPTS & 1*MPTS over UDP/RTP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast) /SFP interface
1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface

System Function
LCD & Key board control; web-based NMS management
Ethernet software upgrade

General
Dimensions 430mm×405mm×45mm (WxDxH)
Approx weight 4.8 Kg
Temperature range 0~45℃(Operation), -20~80℃(Storage)
Power requirements AC 200V-240V, 50/60Hz, 2A
Power consumption 20W
