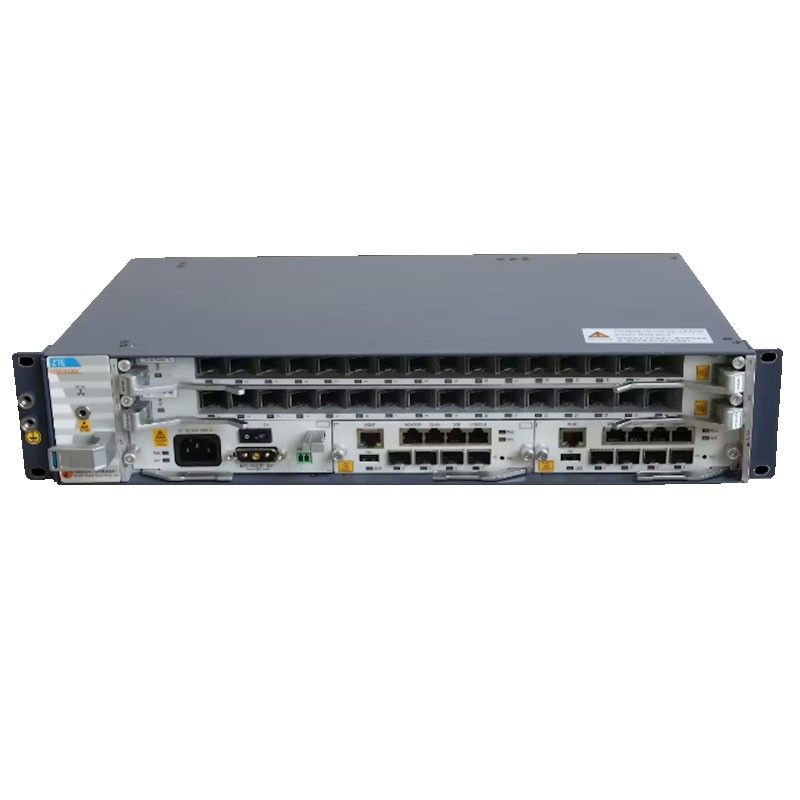

ZXA10 C620 لمارکة ZTE

System architecture

Programmable Network Processor (NP)

Support control and forwarding planes separate.

Access Features

32 GPON, 10G PON, Any-PON or Combo PON ports.

Three generations of PON technologies and directions, and two generations PON(GPON and XG(S)-PON) in one card.

Support full services and scenarios access, such as big video, 5G bearing, Access office architecture, etc.

Shelf configuration

 Total 6 slots (AC) / 7 slots (DC)

 2 slots for service cards

 2 slots for switch & control cards

 1 slot for AC power card / 2 slots for DC power cards

 1 slot for fan module

 System capability

 Switching capacity of backplane bus: 1.8 Tbit/s

 Switching and control card: 240 Gbit/s

 System switching capacity: 480 Gbit/s

Uplink interface card

4 * 10GE/GE uplink per card (on switching and control card(

Subscriber card density

GPON card: 16 ports per card

XGS-PON card: 16 ports per card

XG-PON card: 16 ports per card

XG-PON & GPON Combo PON card: 16 Combo PON ports per card

XGS-PON & GPON Combo PON card: 16

Combo PON ports per card

Any-PON card: 16 Any-PON ports per card

10G-EPON card: 16 ports per card

P2P card:16 ports 10GE SFP+/GE SFP, or 24 CSFP P2P GE/FE (supports 48-port)

Management & Maintenance

1 out-of-band management interface

1 maintenance serial interface

1 Environmental detection serial interface

1 clock interface provided by SPUFS

1 line card debugging serial interface
