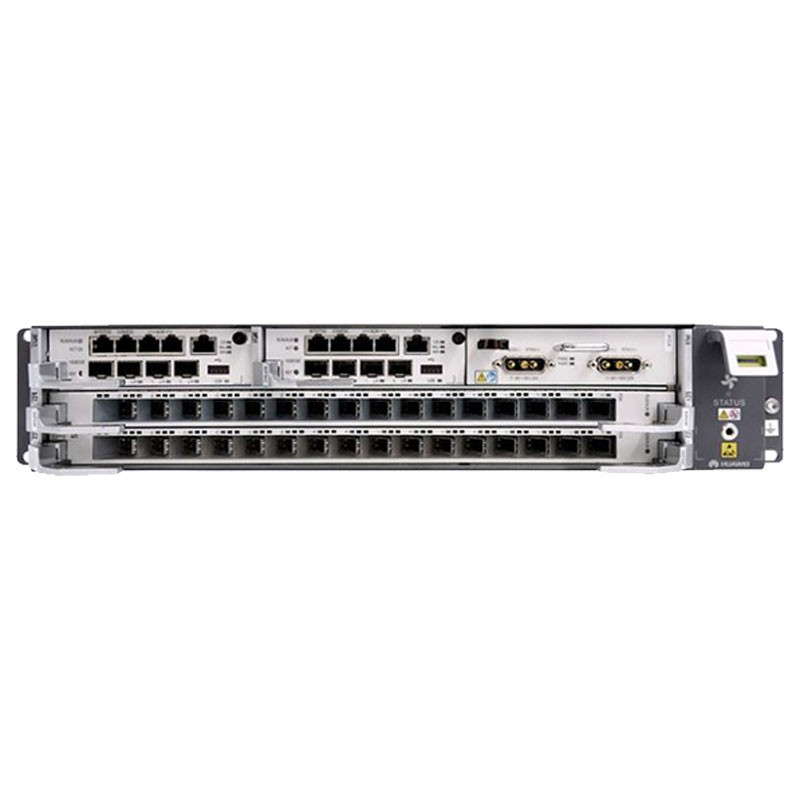

OLT هواوي Huawei SmartAX MA5800 X2 OLT

Huawei SmartAX MA5800 X2 OLT Product Feature

32 x GPON/EPON
96 x GE/FE
16 x 10G GPON/10G EPON
16 x 10G GE
64 x E1

Switching Capacity of the System : 480 Gbit/s
Maximum Number of MAC Addresses : 262,143
Maximum Number of ARP/Routing Entries : 64K
Ambient Temperature : -40°C to 65°C
Working Voltage Range : -38.4V DC to -72V DC
Layer 2 Features : VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features : Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3: MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6 : IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast : IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
QoS : Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability : GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control


1, Multi-media Gigabit aggregation

Uniform access aggregation of optical fibres, copper cables, and cable media through PON/P2P, transforming multi-media independent access networks into a unified architecture access network for unified access and aggregation And management to simplify network architecture and operation and maintenance.

2, 4K/8K/VR video experience:

Single-frame MA5800 can meet 16,000 homes and enjoy 2nd, ultra-high-definition 4K/8K/VR video online; use distributed cache, with larger cache and video burst absorption capability, thus helping 4K/8K/VR video quick start or channel switching; VMOS/eMDI video surveillance can realize intelligent sensing and troubleshooting for 4K/8K/VR video experience, bringing the best network operation and maintenance experience and user service experience.

3, Multi-service virtualization common platform:

The MA5800 has the intelligence and virtualization capabilities to logically fragment devices and network resources, virtualize one OLT into multiple OLTs and assign different virtual OLTs to different services such as homes. , enterprise, Internet of Things and other multi-service intelligent operations, which help to collect old OLT, reduce the number of CO rooms, reduce operating costs; virtualization can support network open and wholesale, achieve multi-ISP shared-access network, ensure new business fast Agile deployment for better business experience.
