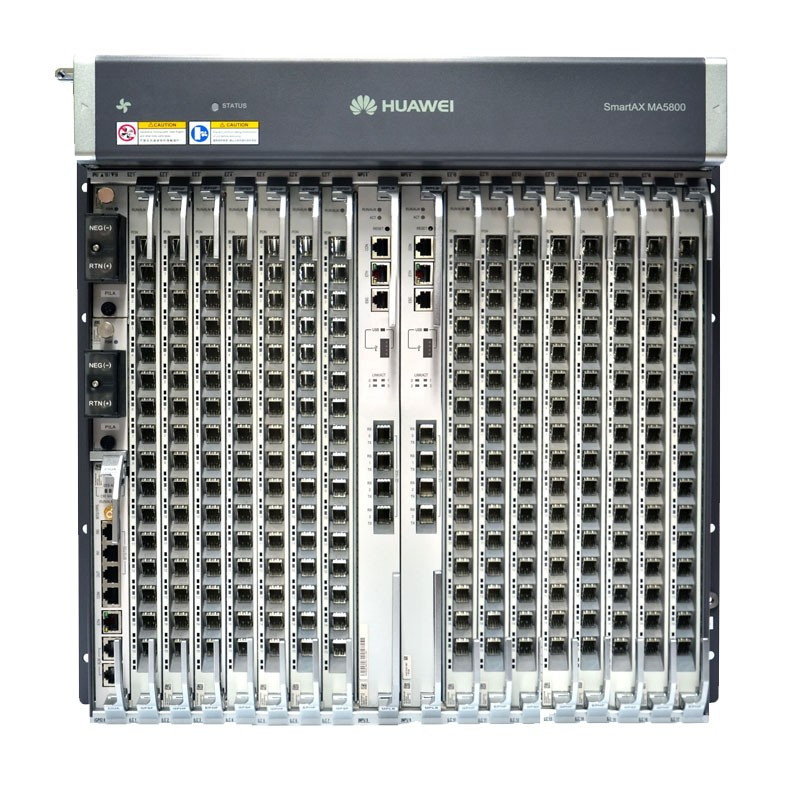

OLT هواوي Huawei SmartAX MA5800-X15 OLT

The Huawei MA5800-X15 chassis can be mounted in a 19" wide c-rack. The modular platform is equipped with slots for service card installation, allowing up to 15 modular GPON cards of 16 ports each to be installed. The hardware and software ma5800-X2, MA5800-X7, MA5800-X15 and MA5800-X17 are compatible.
Huawei OLT GPON MA5800-X15 6RU chassis included: Two MPLA control modules (4 SFP/SFP 1/10g ports each) Two PILA power supplies at 48V. Fan assembly

Switching capacity
of the system     7 Tbit/s
Maximum bandwidth
per slot     H901MPLB: 200 Gbit/s
H901MPLA: 100 Gbit/s
Maximum number
of MAC address     262143
Maximum number of ARP/routing entries     65536
Maximum number of concurrent 4K video users     16000
GPON ports     240
10G GPON ports     120
GE/FE ports     720
10GE ports     120
Cabinet supported     N63E-22

Control Board
MPLB     It provides 4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board
MPLA
CKUA     Supports stratum-3 clock functions by working with MPLB and MPLA
Upstream interface board
NXED     Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream ports currently provided in MA5800 are not enough.
Universal interface board
CIUA     Provides synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports, and provides transparent transmission Ethernet ports.
Service board
GPHF     Provides 16 GPON ports for access services
GPSF     Provides 16 GPON ports for home access services
CGHF     Provides 16-port XG-PON and GPON Combo ports for home access services
CSHF     Provides 16-port XGS-PON and GPON Combo ports for home access services
XGHD     Provides 8 asymmetric 10G GPON ports for access services.
TWED     Provides 8 symmetric 10G GPON ports for access services.
EDSH     32-channel E1 upstream board, supporting native TDM mode.
OGHK     48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
OXHD     8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
Power board
PILA     Provides -48V DC input
Fan Monitoring board
FMLA     Supplier power to fans; controls and moniotes the fans
FMMA     Supplier power to fans; controls and moniotes the fans

Maximum weight(including mounting brackets)     35 kg
Maximum input current     60 A
Power supply     Power supply mode: DC
Working voltage range: -38.4 V to -72 V
Rated voltage: -48 V / -60 V
Ambient temperature     -40°C to +65°C The MA5800 can start up at a lowest
The MA5800 can start up at a lowest temperature of -25°C and run at -40°C.
Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
Ambient humidity     5% RH to 95% RH
