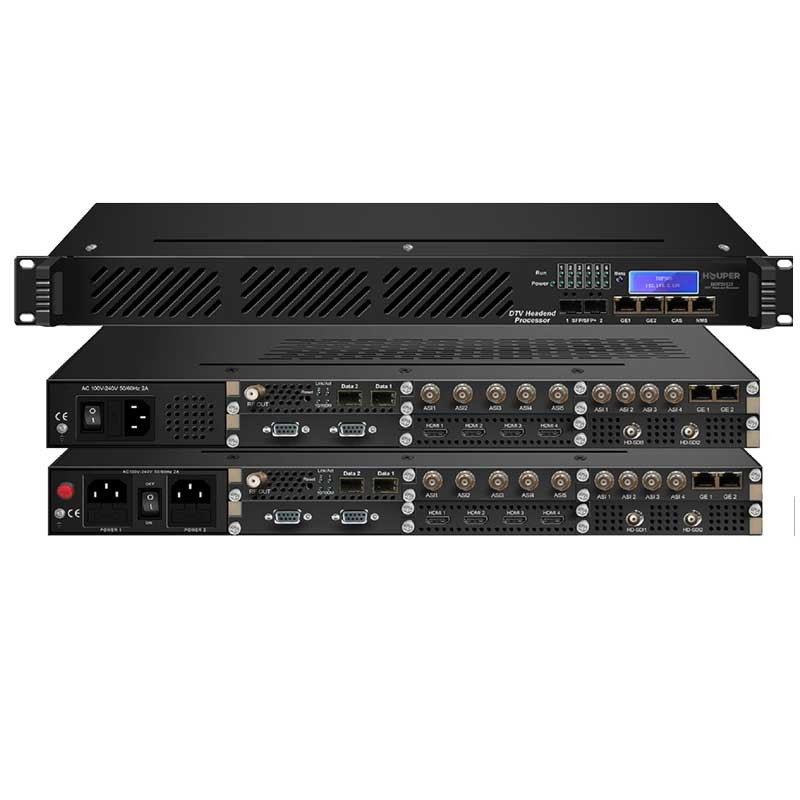

HOP28123 DTV Head-end و IPTV

Features

• Support flexible combination of different type of modules
• Support up to 6 modules
• Support IP input/output, RJ45/SFP interface, Unicast/Multicast
• Support Web management, Updates via web
• Single or Redundancy power supply for option

• 4 CVBS/SDI Encoding Module
• 4 CVBS Encoding Module
• 8 CVBS(or 8 audio) Encoding Module
• 2 HDMI/SDI Encoding/Transcoding Module
• 8 HDMI Encoding Module
• 4 HDMI/SDI Encoding Module
• 4 HDMI/SDI Encoding Module
• 2 Tuner Descrambling Module
• 4 FTA Tuner Module
• 8 FTA Tuner Module
• 4 frequencies Descrambling Module
• 8 FTA Tuner Module
• 4 ASI/IP Multiplexing Module
• 5 ASI Multiplexing Module
• IP De-Multiplexing Module
• ASI/IP Mux-Scrambler Module
• ASI TS Switch Module
• 16/32 QAM Modulating Module
• 48 QAM Modulating Module
• 8/16 ISDB-Tb Modulating Module
• 8/16 DVB-T Modulating Module
• 8 ATSC Modulating Module
• 2 HD-SDI Decoding Module
• 4 HDMI Decoding Module

HOP28106.1 Module Specifications:

• Input: 4 CVBS (DB9 to RCA) or 4 SDI (BNC)
• Output: 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast
• Video Encoding:
• Video format: MPEG-2, MPEG4 AVC/H.264
• Image format: PAL, NTSC SD signal (Only for CVBS input)
• Resolution:
• Input: 720*576 @50i
• Output: 720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz
• Input: 720*480 @60i
• Output: 720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz
• Rate Control: CBR/VBR
• GOP structure: IPPP, IBPBP, IBBPB, IBBBP
• Video bitrate: 0.5~5Mbps
• Audio Encoding:
• Audio format: MPEG1 Audio Layer 2, LC-AAC, HE-AAC
• Sampling rate: 48KHz
• Bit-rate: 48/56/64/80/96/112/128/160/192/224/256/320/384 Kbps
• Support Logo, Caption, QR Code insertion

HOP28106.3 Module Specifications:

• Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)
• Output: 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast
• Video Encoding:
• Video format: MPEG-2 (4:2:0)
• Image format: PAL, NTSC SD signal
• Output resolution: 720×480_60i, 544×480_60i, 352×480_60i, 352×240_60i,
• 320×240_60i, 176×240_60i, 176×120_60i, 720×576_50i,
• 704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i,
• 176×288_50i, 176×144_50i
• GOP structure: IP, IBP, IBBP, IBBBP
• Video bitrate: 0.1Mbps~8Mbps per channel
• Support CC (closed caption)
• Audio Encoding:
• Audio format: MPEG-1 Layer 2, DD AC3 (2.0)
• Sampling rate: 48KHz
• Audio bitrate:128/192/256/320/384kbps each channel
• Support Logo, Caption, QR Code insertion

HOP28106.4 Module Specifications:

• Input: 8 CVBS video, 8 Stereo Audio (DB15 to RCA), or 8 ch analog audio input to work as audio encoder module
• Output: 1 MPTS and 8 SPTS output over UDP/RTP, unicast and multicast
• Video Encoding:
• Video format: MPEG4 AVC/H.264
• Image format: PAL, NTSC SD signal
• Resolution: 720×576i, 720×480i
• Rate Control: CBR/VBR
• GOP structure: IPP
• Video bitrate: 1~7Mbps each channel
• Audio Encoding:
• Audio format: MPEG-1 Layer 2
• Sampling rate: 48KHz
• Bit-rate: 64/128/192/224/256/320/384Kbps each channel
• Support Logo, Caption, QR Code insertion

HOP28106.5 Module Specifications:

• Input: 2*HDMI, 2*BNC for CC (Closed Caption) input
• Input: 2*HD/SD SDI
• Output: 1*MPTS output over UDP, Unicast/Multicast
• Video Encoding:
• Video format: MPEG2 & MPEG4 AVC/H.264
• Input resolution: 1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
• Aspect ratio: 16:9, 4:3
• Video bitrate: 0.8~19Mbps
• Support CC (closed caption)
• Audio Encoding:
• Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
• Dolby Digital AC3 (2.0) encoding (Optional); AC3 (2.0/5.1) passthrough
• Sampling rate: 48KHz      Audio bitrate: 64Kbps-320kbps each channel
• Video Tanscoding:
• 2*MPEG2 HD → 2*MPEG2/H.264 HD; 4*MPEG2 HD → 4*MPEG2/H.264 SD;
• 2* H.264 HD → 2*MPEG2/H.264 HD; 4* H.264 HD → 4*MPEG2/H.264 SD;
• 4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD
• Audio Tanscoding:
• MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any

HOP28106.7 Module Specifications:

• Input: 4×HDMI (1.4) /SDI input, HDCP 1.4
• Output: 1 MPTS and 4 SPTS output over UDP/RTP/RTSP
• Video Encoding:
• Video format: HEVC/H.265 & MPEG 4 AVC/H.264
• Chroma: 4:2:0
• Bit rate (each channel): 0.5Mbps~20Mbps (H.265); 4 Mbps~20Mbps (H.264)
• Rate Control: CBR/VBR         GOP structure: IBBP, IPPP
• Audio Encoding:
• Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough
• Bit-rate (each channel):
• 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC);
• 24 Kbps~128 Kbps (HE-AAC); 18 Kbps~56 Kbps (HE-AAC V2)
• Sampling rate: 48KHz Support Audio Gain adjust
• Support Logo, QR Code insertion--Optional as per order

HOP28106.8 Module Specifications:

• Input: 4×SDI/HDMI (1.4) input, HDCP 1.4
• Output: 1 MPTS and 4 SPTS output over UDP/RTP/RTSP
• Video Encoding:
• Video format: HEVC/H.265 & MPEG 4 AVC/H.264
• Resolution:
• HDMI VI & SDI
• Chroma: 4:2:0  Bit rate: 0.5Mbps~20Mbps (H.265); 4 Mbps~20Mbps (H.264)
• Rate Control: CBR/VBR
• GOP structure: IBBP, IPPP
• Audio Encoding:
• Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough
• Sampling rate: 48KHz
• Bit-rate (each channel):
• 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
• 24 Kbps~128 Kbps (HE-AAC)
• 18 Kbps~56 Kbps (HE-AAC V2)
• Support audio gain adjust
• Support Logo, QR Code insertion--available on HDMI V1

HOP28106.9 Module Specifications:

• Stream in: 2 Tuner input, F Type,
• 16 IP inputs from data port, UDP/RTP, unicast and multicast, IGMP V2/V3
• Stream out: 1 MPTS and 16 SPTS outputs over UDP/RTP/RTSP, Unicast/Multicast
• DVB-CI: 2 independent common interface slots
• Tuner input: DVB-S/S2/S2X
• Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps;  8APSK/32APSK: 0.5~40Msps
• Input Frequency: 950-2150MHz
• DVB-S   Constellation: QPSK
•         FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
• DVB-S2  Constellation: QPSK/8PSK/16APSK/32APSK
• FEC Demodulation:
• Support Diseqc function
• Multiplexing:
• Maximum PID Remapping: 256 output pids
• Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
• Descrambling:
• CAM/CI Quantity: 2
• BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS key

HOP28106.10 Module Specifications:

• Stream in: 4 Tuner input, F Type
• Stream out: 1 MPTS out for mux, 4 MPTS out for 4 tuner input pass through over UDP/RTP/RTSP, unicast/multicast
• Tuner input: DVB-S/S2/S2X
• Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps;  8APSK/32APSK: 0.5~40Msps
• Input Frequency: 950-2150MHz
• DVB-S   Constellation: QPSK
•         FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
• DVB-S2  Constellation: QPSK/8PSK/16APSK/32APSK
• DVB-S2X  Constellation: QPSK/8PSK/8APSK/16APSK/32APSK
• Support Diseqc function
• Multiplexing:
• Max number of managing PID: 256
• Function: PID remapping (automatically/ manually), Accurate PCR adjust, PID pass-through
• Descrambling:
• BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Key

HOP28106.11 Stream in: 4 frequencies input(each RF in interface for 2 frequencies locking), F Type, 16 IP inputs(UDP/RTP) from data port, unicast and multicast, IGMP V2/V3

• Stream out: 1 MPTS and 16 SPTS output over UDP and RTP/RTSP, Unicast/Multicast
• DVB-CI: 2 independent common interface slots
• Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
• Standard: DVB-C (J.83 A/C); J.83B
• Input Frequency: 60MHz~890MHz
• Symbol rate: 1000~9000Ksps
• Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
• Standard: DVB-T/T2
• Frequency In: 60MHz~890MHz
• Bandwidth: 5/6/7/8M bandwidth
• PLP Index: 0~255 for DVB-T2
• Standard: ISDB-T
• Input Frequency: 60-890MHz
• Multiplexing:
• Maximum PID Remapping: 256 output pids
• Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
• Descrambling:
• CAM/CI Quantity: 2
• BISS Mode: Mode 1, Mode E;  up to 120Mbps, 32 BISS Keys

HOP28106.12 Module Specifications:

• ASI inputs/outputs: 4 ASI bi-direction, BNC 75Ω (manually set input or output)
• IP inputs/outputs: 2 GE Ports in the module (100/1000Mbps self-adaption) and the DHP200 chassis (data ports or other modules)
• Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
• Stream In: maximum 4 ASI input, 768 IP inputs over UDP/RTP (256 IP inputs thru GE1, GE2 in the module and the DHP200 chassis respectively)
• Stream Out: maximum 4 ASI output, 4 MPTS output over UDP/RTP thru GE1, GE2 in the module and thru the DHP200 chassis

HOP28106.13 Module Specifications:

• ASI inputs/outputs: 4 ASI bi-direction, BNC 75Ω
• IP inputs/outputs: 2 Ethernet Port (100/1000M)
• Stream connector input
• Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
• Stream In: maximum 4 ASI input, 32 IP input per channel over UDP/RTP
• Stream Out: maximum 4 ASI output, 4 IP (MPTS) output over UDP/RTP/RTSP
• Scrambling:
• Maximum simulcrypt CA: 4
• Standard: ETR289, ETSI 101 197, ETSI 103 197
• Connection: Local/remote connection

HOP28106.14 Module Specifications:

• ASI inputs/outputs: 5 ASI bi-direction, BNC 75Ω (manually set input or output)
• IP inputs/outputs: the DHP200 chassis (data ports or other modules)
• Stream in: maximum 5 ASI input, 256 IP inputs over UDP/RTP thru the DHP200 chassis
• Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
• Stream out: maximum 5 ASI output, 5 MPTS out over UDP/RTP thru the DHP200 chassis

HOP28106.15 Module Specifications:

• IP input: 512 SPTS or MPTS input over UDP, RTP, Unicast and Multicast thru GE1 Ethernet Port (100/1000M)
• Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
• Stream Out: 512 SPTS output over UDP, RTP, Unicast and Multicast through GE2 Ethernet Port (100/1000M)

HOP28106.16 Module Specifications:

• Input: 3 ASI
• Output: 2 ASI output (output 1 for one of the switch steams out, output 2 for main input stream)
• TS packet: 188/204
• Switch Mode: Manually/Auto
• Support monitor program status (bitrate, continuous counting, synchronization status)
• Support channel mode and program mode switching
• Support to switch back to the main stream manually or automatically once the main stream recovers

HOP28106.17 Module Specifications:

• Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board, unicast/multicast
• Data output: 16 or 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP) Trans Rate: Max 840Mbps/GE Port
• RF output (F type): 16/32 channels of multiplexing, scrambling and modualtion.
• Multiplexing:
• Maximum PID Remapping: 256 output pids per channel
• Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically
• Scrambling:
• Maximum simulcrypt CA: 6   Standard: ETR289, ETSI 101 197, ETSI 103 197
• Connection: Local/remote connection
• Modulation:
• Standard: EN300 429/ITU-T J.83A/B/C  MER: ≥40dB
• RF frequency: 50~960MHz, 1KHz step
• RF output level: -20~+10dBm (87~117 dBµV), 0.1dB step for all carriers
• Symbol Rate: 3600~7200Ksps, 1ksps stepping 5057Ksps (J.83B, 64QAM), 5361Ksps (J.83B, 256QAM) Constellation/Bandwidth: J.83A: 16/32/64/128/256QAM, 8M J.83B/C: 64/256QAM, 6M
• 16 non-adjacent carrier outputs within 192M bandwidth
• 32 non-adjacent carrier outputs within 384M bandwidth

HOP28106.18 Module Specifications:

• Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board, unicast/multicast
• Data output: 48 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP), GE1 for IP #1-#24, GE2 for IP #25-#48
• Trans Rate: Max 840Mbps/GE Port
• Multiplexing:
• Maximum PID Remapping: 256 output PIDs per channel
• Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically
• Scrambling:
• Maximum simulcrypt CA: 6  Standard: ETR289, ETSI 101 197, ETSI 103 197
• Connection: Local/remote connection
• Modulation:
• Standard: EN300 429/ITU-T J.83A/B/C   MER: ≥40dB
• RF frequency: 50~960MHz, 1KHz step
• RF output level: -20~+10dBm (87~117 dBµV), 0.1dB step for all carriers
• Symbol Rate: 3600~7200Ksps, 1ksps stepping 5057Ksps (J.83B, 64QAM), 5361Ksps (J.83B, 256QAM) Constellation/Bandwidth: J.83A: 16/32/64/128/256QAM, 8M J.83B/C: 64/256QAM, 6M
• RF output: 2 F type output ports for 48 non-adjacent carriers, 75Ω
• Carrier 1~24 out thru RF1, 25~48 thru RF2, each RF supports 384M bandwidth

HOP28106.19 Module Specifications:

• Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board, unicast/multicast
• Data output: 8/16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
• Trans Rate: Max 840Mbps/GE Port
• RF output (F type): 8/16 channels of multiplexing and modulation.
• Multiplexing:
• Maximum PID Remapping: 256 input per channel
• Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
• Modulation:
• Standard: ARIB STD-B31
• Bandwidth: 6M                   Constellation: QPSK, 16QAM, 64QAM
• Guard Interval: 1/32, 1/16, 1/8, 1/4    Transmission Mode: 2K, 4K, 8K         Code rate: 1/2, 2/3, 3/4, 5/6, 7/8      MER: ≥40dB
• RF frequency: 50~960MHz, 1KHz step
• RF output level: -20dBm~+10dBm (87~117dbµV), 0.1dB stepping
• RF Output: 8/16 non-adjacent carrier outputs within 192M bandwidth

HOP28106.20 Module Specifications:

• Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board, unicast/multicast
• Data output: 8/16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
• Trans Rate: Max 840Mbps/GE Port
• Multiplexing:
• Channel Number: 8/16 multiplexing channels
• Maximum PID Remapping: 256 input per channel
• Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
• Modulation:
• Standard: ETSI EN300 744      MER: ≥40db
• RF Frequency: 50~960MHz, 1KHz step
• Constellation: QPSK/16QAM/64QAM Bandwidth: 6/7/8 MHz
• Trans mode: 2K/4K/8K    FEC: 1/2, 2/3, 3/4, 5/6, 7/8
• RF Output Level: -20~+10dbm (for all carriers), 0.1dB stepping
• RF Output (F type): 8/16 non-adjacent carrier outputs within 192M bandwidth

HOP28106.21 Module Specifications:

• Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board, unicast/multicast
• Data output: 8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
• Trans Rate: Max 840Mbps/GE Port
• Multiplexing:
• Channel Number: 8 multiplexing channels
• Maximum PID Remapping: 256 input per channel
• Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
• Modulation:
• Standard: ATSC A/53  MER: ≥40db   RF Frequency: 50~960MHz, 1KHz step
• Constellation: 8VSB   Bandwidth: 6MHz   FEC: RS(208 188)+Trellis
• RF Output Level: -20~+10dbm (for all carriers), 0.1db stepping
• RF Output (F Type) : 8 non-adjacent carrier outputs within 192M bandwidth

HOP28106.22 Module Specifications:

• ASI input/output: 2 ASI bi-directions, BNC 75Ω
• IP Stream input support
• IP output: 1 MPTS output over UDP, Unicast/Multicast
• Decoding:
• Video/Audio Out: 2 HD/SD SDI output
• Video Format: MPEG-2, MPEG-4 AVC/H.264
• Resolution: 480i,480p,576i,576p,720p@50/59.94/60,1080i@50/59.94/60
• Chroma: 4:2:0
• Audio Format: MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough,
• Support Dual Audio Out
• Support CC/Subtitle

HOP28106.23 Module Specifications:

• Input: 8 IP (MPTS/SPTS) input over UDP/RTP thru stream connector, Unicast/Multicast
• Output: 4 HDMI output
• Decoding:
• Video/Audio Out: 4 HDMI output with 1 channel stereo audio embedded in each port
• Video Format: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+
• Audio Format: MPEG 1 Layer 2, LC-AAC, HE-AAC, AC3 (2.0), DRA
• Resolution: 480i, 480p, 576i, 576p,1280×720_50p, 1280×720_60p, 1920×1080_50i, 1920×1080_50p 1920×1080_60i, 1920×1080_60p
• Support manually upscale/downscale resolution
