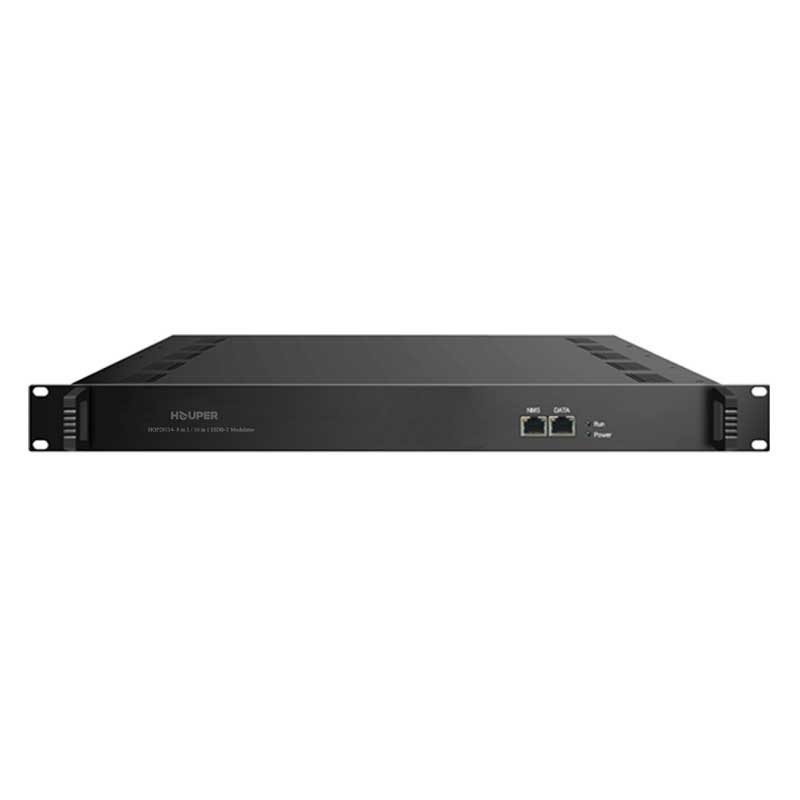

المغير HOP28114 ISDB-T

Features

• 3 GE ports for data input and output
• Max 840Mbps for each GE input
• Supports accurate PCR adjusting
• Supports CA filtering, PID remapping and PSI/SI editing
• Supports up to 256 PIDS remapping per channel
• Support 8 IP output through Data1 & Data2 over UDP/RTP/RTSP--Version I
• Support 16 IP output through Data1 & Data2 over UDP/RTP/RTSP--Version II
• 8 (or 16) non-adjacent carriers output, compliant to ISDB-Tb (ARIB STD-B31)
• Support Web-based Network management

Input

• Max 512 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional)
• Transport Protocol : TS over UDP/RTP, unicast and multicast, IGMP V2/V3
• Transmission Rate : Max 840Mbps for each GE input

Mux

• Input Channel 512 IP streams
• Output Channel 8 (or 16)
• Max PIDs 256 per channel

• PID remapping (auto/manually optional)
• PCR accurate adjusting
• PSI/SI table automatically generating
• Standard ARIB STD-B31
• Bandwidth 6M
• Constellation QPSK, 16QAM, 64QAM
• Guard Interval 1/32, 1/16, 1/8, 1/4
• Transmission Mode 2K, 4K, 8K
• Code rate 1/2, 2/3, 3/4, 5/6, 7/8
• MER ≥40dB
• RF frequency 50~960MHz, 1KHz step
• RF output level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
• Output Channel 16 non-adjacent carriers output - Version II

RF Output

• Interface 1 F typed port, 75Ω impedance, ACLR -50 dBc
