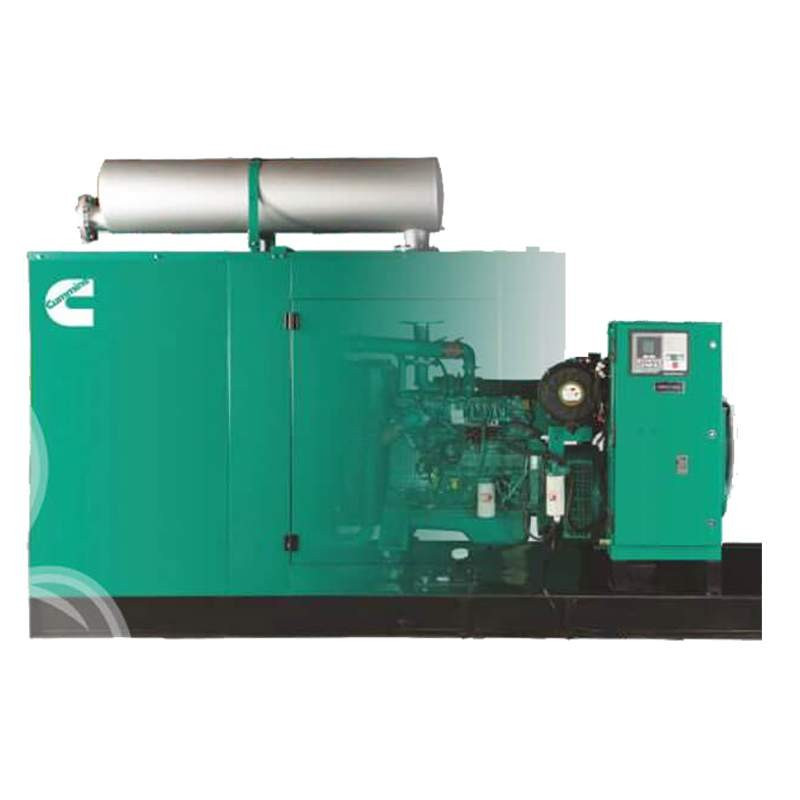

مولد ديزل الكمینز 180 كيلو فولت أمبير C180D5P

Latest Technology Product with Global Cummins Platform

• The Cummins® QSB6.7 series rugged engine and world class Stamford alternator powered diesel generator set

• Class defining Quantum engine technology with fully integrated subsystem

• Full Authority Electronic Engine

• Advanced in-cylinder technology to meet latest emission norms without any after-treatment device

• Smart aesthetic and superior finish

• Compact in size with optimum power to weight ratio

Environment Friendly Power

• Class defining technology engine is designed to meet stringent exhaust emission tests as per revised MoEF norms, thus offering environment friendly power.

• The Cummins® diesel generator sets are available with the lowest noise levels in its range

Lowest Operating Cost and Comprehensive Warranty

• Highly reliable and durable product

• All elements are designed to work together to maximize efficiency even at part loads, offering the advantage of lowest operating costs.

• 500 Hours/ 1 year service interval

• Industry acknowledged best-in-class comprehensive warranty on the entire package including rubber components

Single Source Power Assurance

• All the major components – the engine, alternator, control system and canopy are designed, manufactured and tested by Cummins India.

• Best and largest customer support network in India,

• Capable of providing round-the-clock service and spares support

• All these things put together, Cummins® offers you SINGLE SOURCE POWER ASSURANCE

Engine

• Cummins® QSB6.7 series, 6 cylinder, In-line 4 stroke, radiator cooled engine

• Full Authority Electronic Engine

• Well designed air handling system with

— Dry type, Heavy duty, Replacable paper element air cleaner with restriction indicator

 — Air to air aftercooling

— Optimised turbocharger for increased altitude capabilities

• Best in class fuel economy with

- Bosch H PCR fuel system with A1  class electronic governing

- Dual fuel filter system: Pre filter including water separator and Water In Fuel (WI F) sensor and main filter

• Standard integral set-mounted radiator system, designed and tested for 50°C ambient temperatures

• Full flow spin on lube oil filter

• First fill of lube oil and coolant

• Electrical starter motor with soft start engagement feature

• Battery charging alternator

• 2 X 12 V DC battery

Alternator

• Stamford S3L1D alternator frames from cummins Generator Technologies

• Brushless type, Screen protected, Revolving field, Self excited alternator conforming to IS/IEC 60034-1

• 3 Phase dedicated  winding with 6 terminals brought out for connection

• Better motor starting capability

• Best in class efficiency

• Compact design with sealed bearings for longer life and lesser maintenance

• Impregnation on all wound components for better mechanical strength

• Digital Automatic Voltage Regulator

PS0602 Features

Cummins® PowerStart™ PS0602 control is a microprocessor based generator set monitoring, metering and control system with LCD display designed to meet the demands of today's engine driven generator sets

• AMF Functionality

Electronic Governing

• CAN (J1939) Compatible

• Sync Compatible (Capable to accept external speed signal from 3rd party sync controller)

• Intuitive operator interface which includes LED backlit 128X64 pixel graphic display with tactile feel soft- switches & generator set status LED lamps.

• Remote start-stop

• Engine Metering: Oil pressure, Engine temperature, battery voltage, Engine running hours

• AC Alternator Metering: L-L Voltage and L-N Voltage,

• Current (phase and total), kVA (phase and total), Frequency, kWH, kW and kVA (phase and total), PF, Utility Voltage and Freq.

• Engine Protection: Low lube oil pressure, High/ Low coolant temperature, Battery Over/ Under/ Weak Volts, Fail to Crank/ Start, Sensor failure, Cranking lockout.

• AC Alternator Protection: Over/ Under Voltage, Over/ Under Frequency, Loss of AC Sensing, Over speed, Over Current.

• Data Logging: Engine Hours, Control Hours and upto 5 recent fault codes

• Configurable glow plug control

• 12/24 Volt DC operation

• Sleepmode

• Mod bus interface (RS485 RTU)

• In Power compatible (PC based service tool)

• Certifications - meets the requirement of relevant ISO, EN, Mil Std. and CE standards Maintenance due alarm based on Engine Run Time and due date

• Exerciser scheduler

Silencer

•  Hospital grade silencer with rain cap suitably optimised to meet stringent noise emission standards laid down by MoEF / CPCB

Mounting Arrangement

• Engine and alternator are mounted on a common MS fabricated base frame with AVM pads.

• Base frame with integral fuel tank is provided with drain plug, air vent, inlet and outlet connection, level indicator and provision for cleaning

Optional

• Engine: Coolant heater

• Alternator: PMG

• Control Panel: PC3.3,

 -Bargraph For PC3.3 Panel with kW, Power factor, Frequency, Current, Voltage

- Remote HMI.

Acoustic Enclosure

• Specially designed to meet stringent MoEF/ CPCB norms of 75 dBA @ 1mtr at 75% load under free field conditions

• The acoustic enclosure is made of CRCA sheets in munsel green shade and a structural/ sheet metal base frame painted in black.

• High quality noise absorbant and fire-retardant grade acoustic Insulation material (P.U. Foam) complying to IS 8183

• Two point lifting for easy handling at customer site

• Designed to have optimum serviceability

• Air inlet louvers specially designed to operate at rated load

• Made on special purpose CNC machines for consistency in quality and workmanship

• 11 tank pretreatment process and UV resistant Powder Coating of all parts to withstand extreme environment

• Use of special hardware for longer life

• Flush styling - no projections

• Fluid drains for lube oil and fuel

• Fuel filling arrangement inside the enclosure
