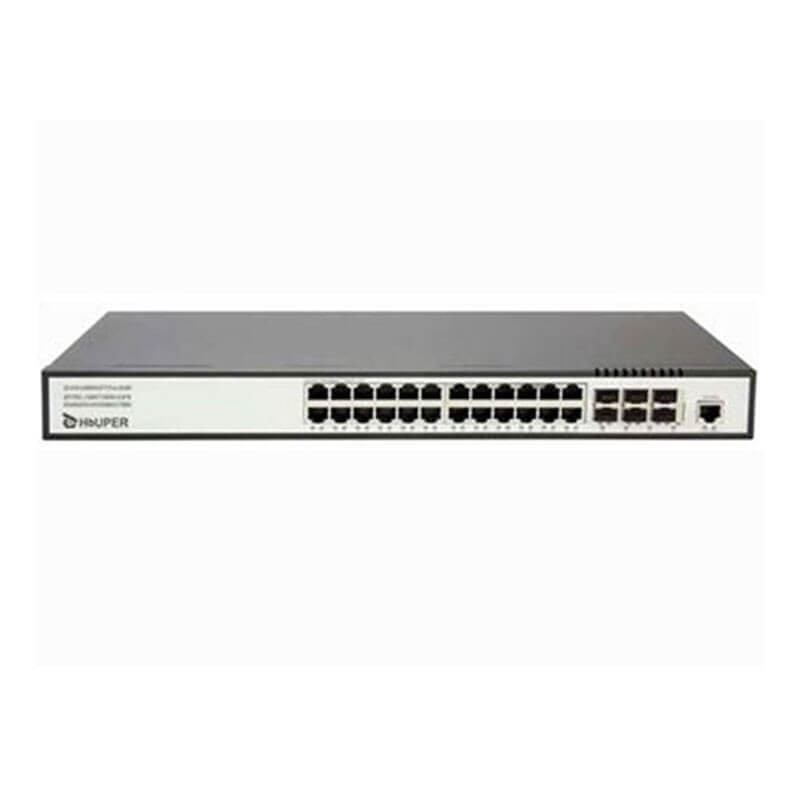

HOP5750-30TP- 24 POE 2.5 جيجابت وصول 6x10 جيجابت محول الوصلة الصاعدة

:Specifications

• .24 *2.5Gports (with PoE), supportIEEE 802.3af/atstandard,10 Gigabit optical ports can be adaptive to Gigabit
• .Ultra-high switching capacity, support full port wire-speed forwarding performance
• .Support weak Layer 3 access, support full port hardware Layer 3 wire-speed forwarding performance
• .High-performance low-power network processor, support for green Ethernet line sleep capability, low device power consumption
• .Support IPv4/IPv6 dual-stack platform, support RIP/OSPF and other routing protocols
• .Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols
• .Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions
• .Ethernet OAM 802 is supported3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms
• .Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication
• .Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand
• .Support IPv4/IPv6 static routing function
• .Supports multi-port mirroring analysis and service flow-based image analysis
• .Support static and flexible QinQfunction
• .Support IPV4/6unicast routing in the policy, support flexible forwarding policy
• .Supports CLI command line management based on serial port, Telnet, and SSHv2 mode
• .Support RFC1213 SNMP network management
• .Supports configuration management based on WEB pages

Product Specifications

:Physical Interface

• .10 Gigabit optical port: 6*10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC
• .PoE ports: 24 Gigabit ports with PoE, support IEEE 802.3af/at standard, type RJ45
• .Console port: manage serial port, used for command line management, type RS232

:Working environment

• .Operating temperature: -15C/~55C
• .Storage temperature: -40C/~70C
• .Relative humidity: 10%~90%, non-condensing

:Power consumption

• .Power supply specifications: single AC power supply, fixed 400W power supply
• .Input power: AC: input 90~264V, 47~67Hz
• .Power consumption of the whole machine: full load power consumption ≤53W, idle power consumption ≤ 25W

:Mechanical structure

• .Chassis shell: metal shell, air-cooled heat dissipation
• .Chassis size: dimensions (length * width * height) (mm) 440 * 290 * 44
• .Installation: Standard 19 inch 1U rack mount installation
