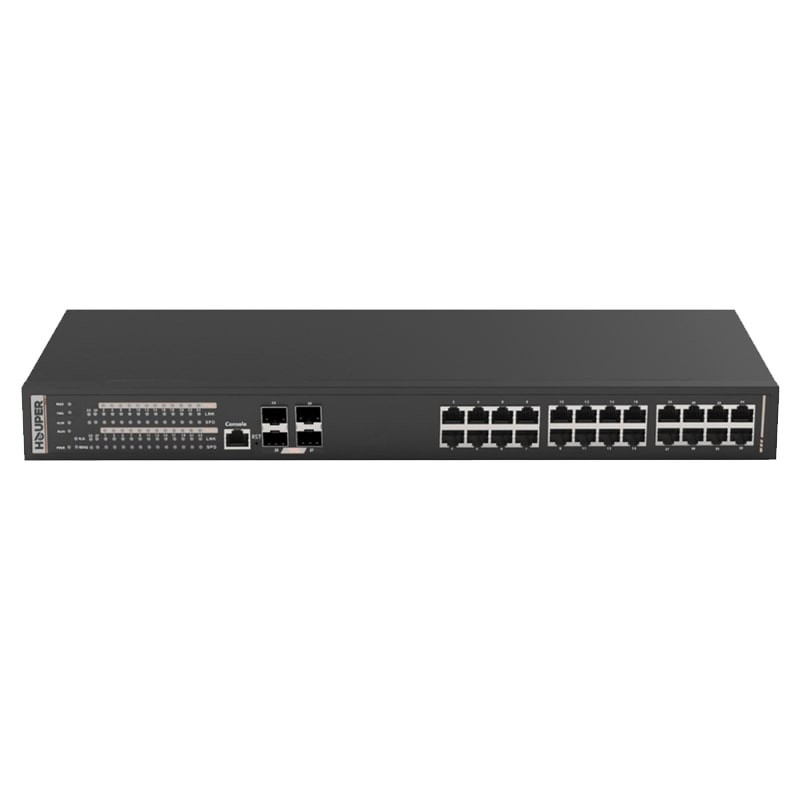

محول HOP3440S1228-4TP الصناعي لهوبر مع 24 منفذ POE جيج و4 وصلات الألياف الضوئية 10 جيجابت

يمكن أن يكون هذا المحول الصناعي حلاً مستقرًا وموثوقًا للمشاريع الهامة نظرًا لوصلته الصاعدة القوية، والطبقة 3 للتوجيه، والبروتوكولات المتنوعة، ونظام التبريد السلبي وPOE .

L3 Managed POE Switch is a mufti-port, high-standard Managed POE Ethernet Switch independently developed by Houper for ethernet network. This product adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high-quality design and reliability. They are designed in rack-mount aluminium housing and have 24 Gigabit Ethernet ports in total (depending on the model). Plus an additional 4* I OGigabit Ethernet Ports supports Layer 3 routing functionality to facilitate the deployment of applications across networks

As a result, it can supply power to PD terminal equipment like wireless AP, webcam, VoIP, and IoT Devices intercom through network cable and meet the infrastructure requirements of a high-density PoE/PoE+ supply.

Physical Characteristics:

Housing

• Metal

IP Rating

P30

Dimensions

• 440mm

Installation Mode

• IRU Chassis Rack-Mount Installation

• Model: HOP3440S 1228-4TP

Ethernet Interface

Ports

4x 10 Gigabit SFP plus

24X10/100/1000M Base-TX RJ45

Port Mode(Tx)

•Auto-Negotiation

Full/Half Duplex Mode

eAuto MDI/MDI-X Connection

Standards IEEE 802.3 for IOBaseT

IEEE 802.3u for IOOBaseT(X) and IOOBaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1 OOOBaseSX/LX/LHX/ZX

IEEE 802.3ae for 10 Gigabit Ethernet

IEEE 802.3x for flow control

IEEE 802.1 D-2004 for Spanning Tree Protocol

IEEE 802. Iw for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802. Ip for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802. IX for authentication

IEEE 802.3ad for Port Trunk with I-ACP

Packet Buffer Size: 12Mbits

Maximum Packet Length: Up to 10K

MAC Address Table: 16K

Transmission Mode: Store and Forward (full/half duplex mode)

Exchange Property

Delay time: < 7gs

Backplane bandwidth: 128Gbps

IGMP Group: 4096

Max. No. of VLAN: 256

VLAN ID Range: VID 1 to 4094

Weight

• 4000g

POE & Power Supply

PoE Pons

.Port 1-24

Power Supply Pin

• Default: 1/2(+), 3/6(-)

Max Power Per Port

IEEE802.3 aflat 30W

Total PWR

480W

• (Model dependent)

Power Consumption:

•24 Watts Max(without POE load)

Power Inputs:1

Power Supply

• Internal power adapter with ACI 00

Connector

.AC: 3 Pin AC Socket

Protection

- 240V 50-60Hz input

• Overload Current Protection, Reverse Polarity Protection

Environmental

Operating Temperature:

• 00<500C (32to 122 OF)

Operating Humidity

• (non-condensing)

Storage Temperature

• -200C700C (-4 to 1580F)

MTBF

100,819 Hours

MTBF Standard

, Telcordia SR-332 GB 250C

Cooling

Passive

Noise Level

.O dBA

Software Features

Management Interface

WebUl(HTTPS), SNMPv3

Management

.ARP, Flow Control, DDM, DHCP Server/Client, IPv4/lPv6, LLDP, LLDP-MED

UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet,

File Management

•Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup

Multiple Configuration, TFTP(RFC783), HTTP, UART

Management Access

• Management VLAN, Management ACL(256)

Filter

0802.10, GMRP, GVRP, IGMP Snooping vl/v2/v3, IGMP Querier

QinQ VLAN

Redundant Network

Link Aggregation, STP/RSTP/MSTP/ERPSv2, Auto Edge Port, BPDU Filtering,

Self Loop Detection

VLAN

support IEEE 802. IQ 4K VLAN, QINQ, Double VLAN, Voice I-AN, Surveillance

VLAN(Auto/Manual), Multicast VLAN Registration(MVR)

Time Management

Local, SNTP, NTP

Unicast Routing

eOSPFv2, RIPv1/v2, Static Route

QOS

•Support Queue Scheduling(WRR, WFQ, Strict Priority , Hybrid(WRR+SP or

WFQ+SP); Priority Queue(8 queues/pott); Class of Service(Port-based, 802.1 p,

IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation

ACL Type

• L2/L3/L4, MAC-based, IPv4-based, IPv6-based

Diagnostic Maintenance

•Support port mirroring, Syslog, Ping

POE Management

• POE working status

Scheduling of POE operation

Security

• Broadcast Storm Control, HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA

SSHvI/v2,Support DHCP Snooping, Option 43/82, 802. IX security access

Support user hierarchical management, ACL access control list

Support DOS, port-based MAC filtering/binding, MAC whitelist

MIB

'Ethernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON

MIB(I & 9 groups, RFC2737 Entity, RFC2863 Interface Group

SNMP-community-MIB
