محول HOP3412S1310-2TP الصناعي المتطور لهوبر مع 8 منافذ جيجابت ومنفذي SFP

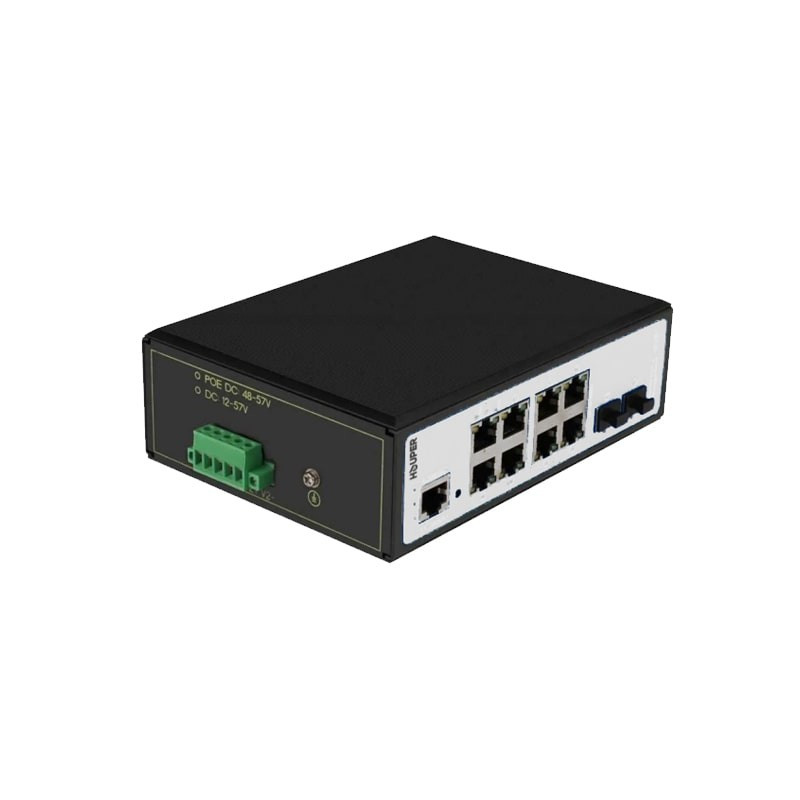

The HOP3412S1310-2TP is a full Gigabit managed industrial PoE switch. it has 8*10/100/1000M PoE ports and 2*100/1000 SFP fiber slot ports, port 1-8 can support IEEE 802.3af/at standard POE power supply, single port POE power up to 15W, and the maximum POE output power is 30W (at-120W). As a POE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the POE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment.

It is suitable for intelligent transportation, rail transportation, electric power industry, mining,metallurgy and green energy construction and so on. A reliable communication networks.Managed model supports a variety of network redundancy protocol STP/RSTP/  MSTP (<50ms). When one-way network fails, communication can be recovered quickly to ensure uninterrupted communication of important applications. HOP3412S1310-2TP industrial series products fully follow industrial product design and material. The shell adopts aluminum alloy to enhance heat dissipation efficiency, IP40 protection grade, and ensures the stable operation of the equipment in bad environment. According to the actual application needs, through Web, CLI, SNMP network management, POE power supply management, port flow control, VLAN division, STP, RSTP and other functions of the application service configuration.

Model

HOP3412S1310-2TP

Interface

2*100/1000Base-X SFP slot (Data)

1 * RS232 console port (115200, N,8,1)

2 set of V+, V- redundant DC power interface (4 Pin Phoenix terminal)

PoE Port

Port 1-8 supports POE @ IEEE802.3af/at

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3x

PoE Standard

IEEE802.3af/at

Ethernet Port Feature

10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive SFP

Port Characteristic

Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module

Forwarding Mode

Store and Forward

Switching Capacity

192bps (Non-blocking)

Forwarding Rate@64byte:  14.88Mpps

MAC: 8K

Buffer Memory: 4M

Jumbo Frame:10K

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5e or later UTP (≤100 meter)

Optical Cable

Multimode: 850nm 0 ~ 500M

Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM

Power Supply Pin

Only support 1/2 (+), 3/6 (-) 4-core power supply

Working Voltage

48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection

Max/ Average Power Per Port

30W/ 15.4W; IEEE802.3af/at

Total PWR / Input Voltage

120W/48VDC

Input Voltage

Input Voltage:12V-40V; Output Voltage:48V；12V Booster

Power Consumption

Standby:<8W; Full load:<240W

LED Indicator

Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Orange),9-10(Link/Act)/ (Green); POE indicator: PoE (Green)

Power Supply

No, optional 48V/120W or 48V/240W industrial power supply

Operation TEMP / Humidity

-40~+85°C;5%~95% RH Non condensing

Storage TEMP / Humidity

-40~+125°C;5%~95% RH Non condensing

Dimension

165*120*52mm

Net /Gross Weight

<0.8kg / <1.2kg

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV

IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m 1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022): Class B

IEC61000-6-2(Common Industrial Standard)

PoE Management

Support total power limit configuration for POE power supply

Support PoE output power allocation per port, close / start af/at

Support PoE output priority configuration per port

Support PoE work status per port display

Support power delay start

Support PoE work and time schedule
