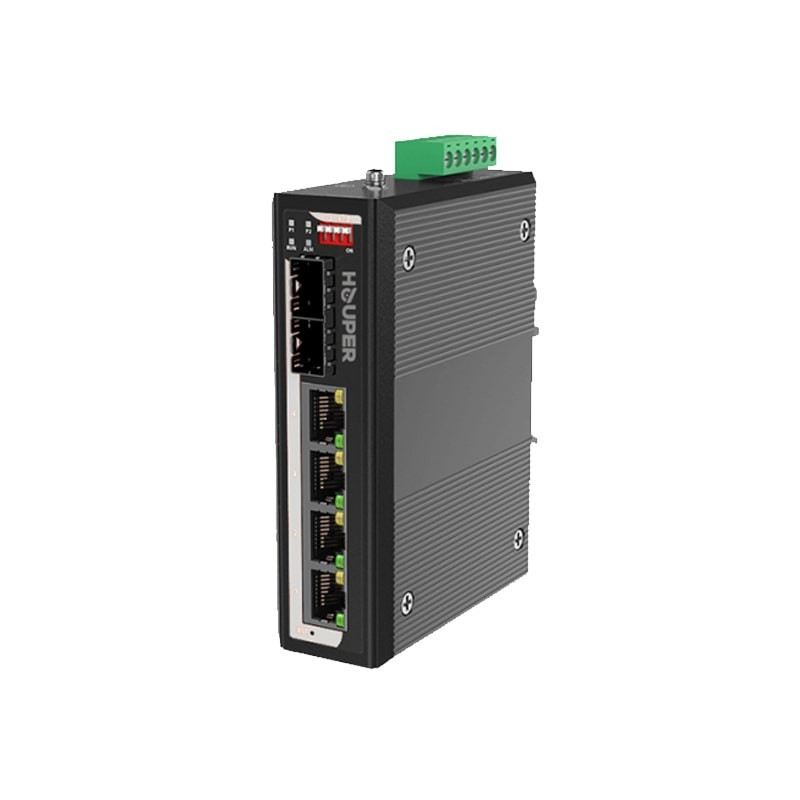

Houper's Smart Industrial Ethernet Switch HOP3412S126-2TP is an innovative and independent product for industrial networking. We define it as the LITE model, designed specifically for small industrial networks and highly cost-effective. In addition to adopting industry-leading technical standards, this product can guarantee reliable and reliable Ethernet transmissions.

Product Features

• A compact, all-aluminium case with a fanless design
• The temperature from -40 to 750C maintains performance in extreme conditions
• DIP Switch supports RSTP/VLAN/SPEED.
• Support IEEE 802.3af/atJbt POE standards without damaging non-PoE devices.
• Provide 9K bytes Jumbo frame that is compatible with multiple extension protocols
• Facility IEEE802.3az energy-efficient Ethernet
• Complete with electricity surge protection, easy to use in an outdoor environment
• Detailed status indicator, working state at a glance
• Design for power input polarity protection
• Either DIN rail or Wall Mount Installation
• An easy-to-use WebGUI interface

Model: HOP3412S126-2TP

Ethernet Interface

• Ports: 4x10/100/1000Base-TX RJ45 ports+2x100/1000 Base-X SFP ports

Port Mode(Tx)

• Auto-Negotiation Speed
• Full/HaIf Duplex Mode
• Auto MDI/MDI-X Connection

Standards

• IEEE 802.3 for IOBaseT
• IEEE 802.3u for IOOBaseT(X) and IOOBaseFX
• IEEE 802.3ab for 1000BaseT(X)
• IEEE 802.3z for 1 OOOBaseSX/LX/LHX/ZX
• IEEE 802.3x for flow control
• IEEE 802.1 D-2004 for Spanning Tree Protocol
• IEEE 802.1w for Rapid Spanning Tree Protocol
• IEEE 802.1 p for Class of Service
• IEEE 802.1Q for VLAN Tagging

Packet Buffer Size

• 02M

Maximum Packet Length

• Upt09K

MAC Address Table

• 04K

Transmission Mode

• Store and Forward (full/half duplex mode)

Exchange Property

• Delay time:7gs
• Backplane bandwidth: 20Gbps
• IGMP Group:0256

VLAN ID Range

• OVID 1 to 4094

Power Supply

• PoE Ports
• Port 1 to 4 IEEE802.3af/at @P0E+

Power Supply Pin

• Default: 1/2(+), 3/6(-)

Max Power Per Port

• 30W
• Total PWR [Input Voltage 120W(DC48-56V) (Model dependent)

• Power Inputs:2

Input Voltage

• e 9-56VDC,Redundant dual inputs

Operating Voltage

• PoE Mode: 48-56VDC

Connector

• e 1 removable 6-contact terminal blocks Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection

• Overload Current Protection, Reverse Polarity Protection

Software Features

Redundancy Protocol

• Support STP/RSTP

Multicast Support

• Support IGMP Snooping VI

VLAN

• Support IEEE 802.1 Q 4K VLAN, Port Isolation, Trunk Group Setting

QOS

• Support Port, 1 Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight

Diagnostic Maintenance

• e Support port mirroring, Port Statistics, Cable Diagnostic

Management Function

• WEBS SNMPv1, EEE, Green Ethernet

Security

• Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint

POE Management(PoE Model)

• POE Mode, State and Power Monitoring

Advance Functions

• Bandwidth Control(lngress and Egress Rate), Jumbo Frame, Firmware Online Upgrade, Configuration Backup

Physical Characteristics

Housing:

• Aluminum case

IP Rating

• IP40

Dimensions

• 120mm x 90mm x 35mm (L x W x H)

Installation

• DIN Rail/Wall Mount

Weight

• 350g

Environmental

Operating Temperature

• 0-400C to 750C

Operating Humidity

• (non-condensing)

Storage Temperature

• -400C¯850C

MTBF

• 907,476 hours @ Telcordia SR-332 Standard

Heat Dissipation

• 34 BTU/h (Non-PoE Mode) 1262 BTU/h (with 360W PoE Load)

Cooling

• Passive Cooling, Fanless Design

Noise

• Level O dBA
