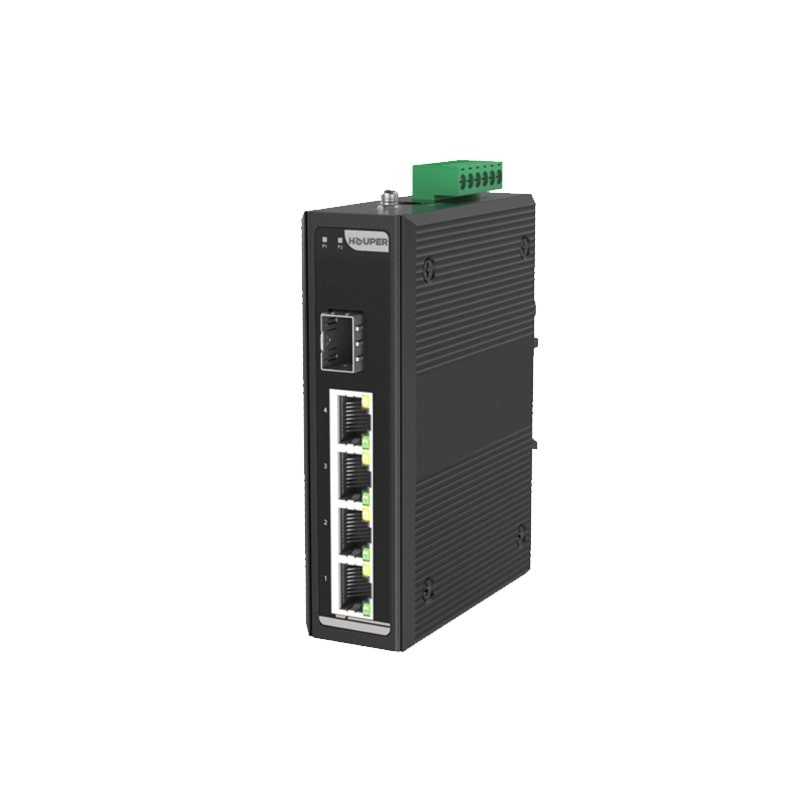

محول HOP3412S125-lTP الصناعي لهوبر 4 منافذ جيجابت POE 30 واط ومنفذ واحد من ألياف غير المدار

The Unmanaged Industrial Ethernet Switch is designed for small business industrial network applications. It provides an easy way to make the access point to Fast or Gigabit Ethernet. With a robust design, this switch is ideal for industrial or outdoor surveillance, withstanding the harshest conditions. The Industrial switch is Plug-and-Play, allowing for easy and quick deployment. It can optionally be mounted on a DIN-Rail or Wall Mount, making it suitable for various installation methods. An LED monitor displays information from Ethernet-connected devices such as IP cameras, wireless access points, or PC/Laptops.

Product Features

All-aluminum Case, Compact and Fanless Design

Full/HaIf-dupIex self-adaptation MDI/MDIX automatic recognition

Optionally support IEEE 802.3af/at/bt POE Standard, without damaging non-PoE devices

Operating Temperature from -40 to 750C

Dual Redundant DC9¯56V power input

Support power input polarity protection; no worries about the reverse connection

Aluminum shell, fanless design

Free fall, shock-proof and vibration-proof for industries

Plug and play; no software configuration is needed

Either DIN rail or Wall Mount installation

Ethernet Interface

ports

10/1 OOBase-TX Port(RJ45)

lxi OOBase-X(SFP/1

Port Mode(Tx):

Auto-Negotiation Speed

Full/HaIf Duplex Mode

Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3x for flow control and back pressure

e IEEE802.3az for Energy Efficient Ethernet(EEE)

Packet Buffer Size

0512K

Maximum Packet Length

09K

MAC Address Table

04K

Transmission Mode

Store and Forward (full/half duplex mode)

Exchange Property Delay time:

7 gs

Backplane bandwidth: I .25G

POE & Power Supply

POE Ports

Port 1 to 4 IEEE802.3af/at @PoE+

Default

1/2(+), 3/6(-) or 4/5(+), 7/8(-)

Max Power Per Port

30W

Total PWR /Input Voltage

120W(DC48-56V) (Model dependent)

Power Consumption

3 Watts Max (without POE load)

Input Voltage

9-56VDC, Redundant dual inputs

Operating Voltage

30W PoE Mode: 48-56VDC

Connector

I removable 6-contact terminal blocks Pin 1/2 for Power I, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection

Overload Current Protection, Reverse Polarity Protection

Physical Characteristics

Housing

Aluminum case

IP Rating

IP40

ESD Protection

6kV

EFT Protection

6kV

Dimensions

120mm x 90mm x35mm (L x W x H)

Installation

Mode DIN Rail/Wall Mount

Weight

400g (without POE)

Working Environment

(-40 to 167 OF)

Operating Humidity

(non-condensing)

Storage Temperature

(40 to 185 OF)

Heat Dissipation

10 BTU/h (Non-PoE)

0420 BTU/h (30W POE)

1260 BTU/h (90W POE)
