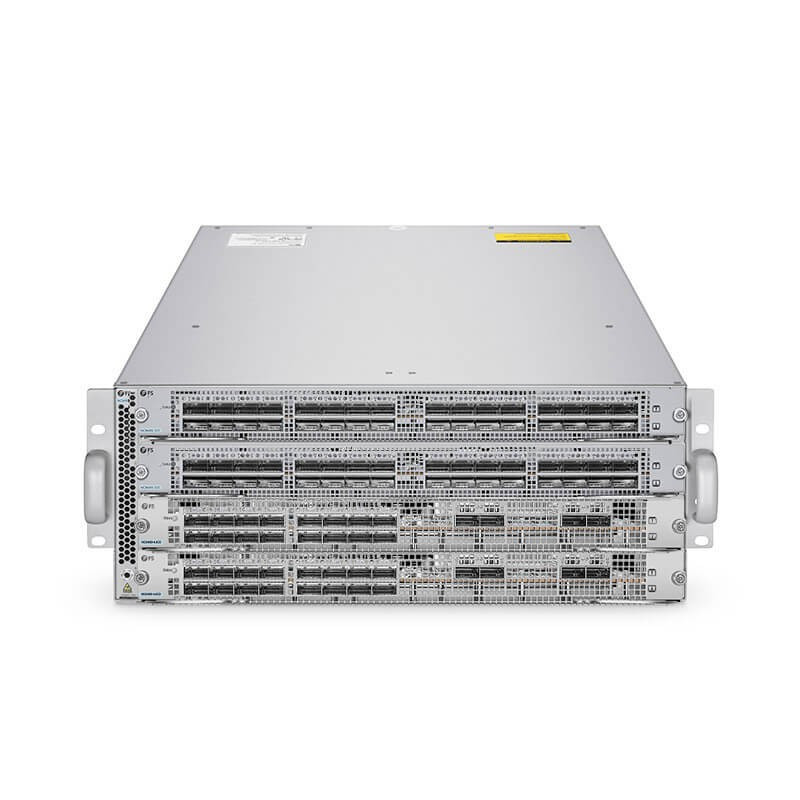

محول مركز بيانات 128 منفذا 100 جيجا و128 منفذا 40 جيجا جيجا

الحد الأقصى لاستهلاك الکهرباء له أقل من 1950 واط وMTBF الخاص به هو 390,000 ساعة.

Specifications

Product Highlights

Flexible 40/100/400GbE Interface Speeds

Support MLAG, BGP4/BGP4+, REUP, GR, BFD

Low-latency, Zero Packet Loss with PFC, ECN, RDMA over Converged Ethernet (RoCE)

2+2 Hot-swappable Power Supplies, 5+1 Smart Fans

Support Ansible, OpenFlow, NETCONF, etc. Configuration and Automation Tools

Support SPAN/RSPAN/ERSPAN and In-band Network Telemetry (INT) for Visibility

Support ACL, RADIUS, TACACS+, DHCP Snooping, etc. for Security

Support SNMP v1/v2c/v3, CLI, Telnet, SSH

Features

Flexible Port Combination with Multi-Rate Line Cards

The modular switches can be customized as per network requirements to offer greater flexibility and opportunity for expansion.

Easier Maintenance

Long-Lasting Efficiency

Muti-functional

2 Line Cards for Flexible Options and High System Scalability

Access port density and bandwidth can be easily increased by adding line cards without affecting the normal operation of the system, and a resilient and scalable network can be built.

NC8400-16CD

16-Port 100Gb QSFP28 and 4-Port 400Gb QSFP-DD Line Card

NC8400-32C

32-Port 100Gb QSFP28 Line Card

2+2 Redundant Power Supplies and Smart Fans

Ship with four power supplies and smart fans by default, provide high availability and longevity.

5+1 Hot-swap Fans

Variable-speed fans for superior cooling, noise and power reduction

2+2 Four AC PSU

PSUs can be removed/replaced without shutting down the system

MLAG Enhances System Reliability

MLAG virtualization technology realizes load balancing and improves link reliability. Supports device-independent upgrades to ensure second-level upgrades for services.
