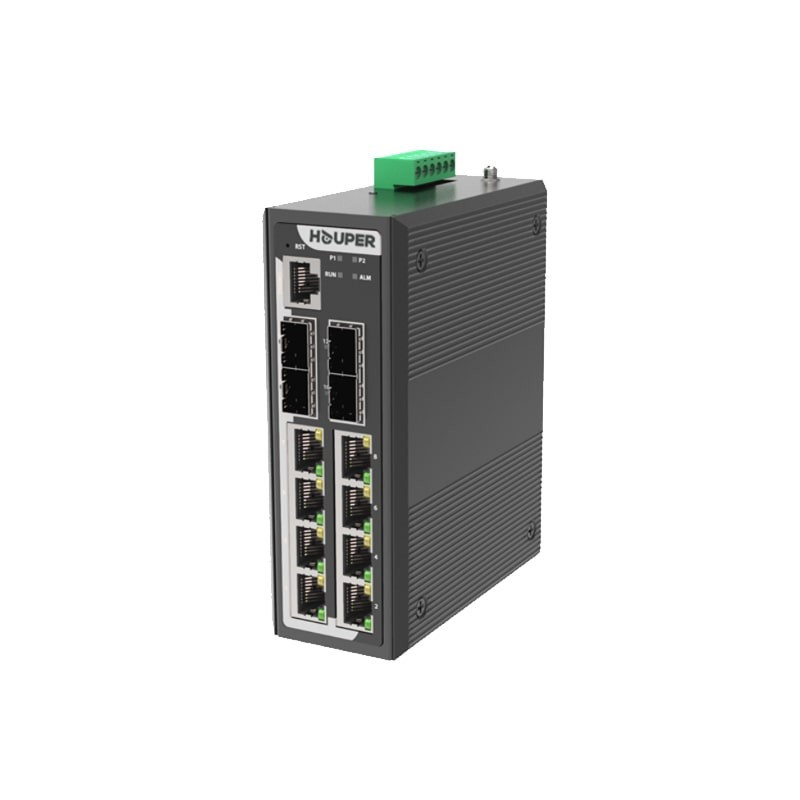

Overview: HOP3412S1212-4TP MANAGED DIN RAIL INDUSTRIAL ETHERNET SWITCH HOP3412S1212-4TP is a multi-port, Layer 3 Industrial Managed Ethernet Switch, independently developed by Houper for industrial ethernet applications. This product is equipped with 8*Gigabit Ethernet ports and 4* 1.25G/10Gigabit SFP Ports, supports Layer 3 routing functionality to facilitate the deployment of applications across networks, and adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high-quality design and reliability.

Product Features

• Layer 3 Model support OSPFv2, RIPv2, Static Route
• Support both IPv4/IPv6 applications
• LLDP, LLDP-MED protocol suitable for 110T Applications
• TACACS+, SNMPv3, IEEE 802.1 X, HTTPS and SSH to enhance network security Port-based VLAN, IEEE 802. IQ VLAN, and GVRP to ease network planning
• Support Voice VLAN and Surveillance VLAN
• Link Aggregation, STP/RSTP/MSTP/ERPS for network redundancy
• ROMON for proactive and efficient network monitoring Fan less, IP40 Rating, -40 0 C 750 C operation temperature design to ensure that the equipment adapts to a variety of harsh environments
• Redundant dual DC/AC power supplies are optional, anti-reverse connection,

Ethernet Interface

Model

HOP3412S12124TP

Pons

• 4x1G/10Gigabit SFP/SFP plus
• 8x10/100/1000M Base-TX

Port Mode(Tx)

• Auto-Negotiation
• Full/HaIf Duplex Mode
• Auto MDI/MDI-X Connection

Standards

• IEEE 802.3 for IOBaseT
• IEEE 802.3u for 100BaseT(X) and 100BaseFX
• IEEE 802.3ab for IOOOBaseT(X)
• IEEE 802.3z for 1 OOOBaseSX/LX/LHX/ZX
• IEEE 802.3ae for 10 Gigabit Ethernet
• IEEE 802.3x for flow control
• IEEE 802. I D-2004 for Spanning Tree Protocol
• IEEE 802. Iw for Rapid Spanning Tree Protocol
• IEEE 802. Is for Multiple Spanning Tree Protocol
• IEEE 802. lp for Class of Service
• IEEE 802. IQ for VLAN Tagging
• IEEE 802. IX for authentication

• 802.3ad for Port Trunk with LACP
• Packet Buffer Size: 12Mbits
• Maximum Packet Length: Up to 10K
• MAC Address Table: 16K
• Transmission Mode:Store and Forward (full/half duplex mode)

Exchange Property

• Delay time: < 7gs

Backplane bandwidth: 128Gbps

IGMP Group:4096

Power Supply

Power Consumption

16 Watts Max

Power Inputs:2

Input Voltage:9-56VDC, Redundant dual inputs

Connector:DC: I removable 6-contact terminal blocks , Pin 1/2 for Power I, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection:

• Overload Current Protection, Reverse Polarity Protection
• Physical Characteristics:
• Housing: Aluminium case
• IP Rating:lP40

Dimensions I : 138mmx 108mmx49mm(LxWxH)

Installation : DIN Rail Mount

Weight: 680g

Software Features

Management Interface

• WebUl(HTTPS), SNMPv3

Management

• ARP, Flow Control, DDM, DHCP Server/Client, IPv4/lPv6, LLDP, LLDP-MED,
• UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet,

File Management

• Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup,
• Multiple Configuration, TFTP(RFC783), HTTP, UART
• Management Access:
• Management VLAN, Management ACL(256)

Filter

• 802.1Q, GMRP, GVRP, IGMP Snooping vl/v2/v3, IGMP Querier
• QinQ VLAN

Redundant Network

• Link Aggregation, STP/RSTP/MSTP/ERPSv2, Auto Edge Port, BPDU Filtering,
• Self Loop Detection

Routing Redundancy

• VRRP(lnterface and IP Address)

VLAN

• support IEEE 802. IQ 4K VLAN, QINQ, Double VLAN, Voice LAN, Surveillance
• VLAN(Auto/ManuaI), Multicast VLAN Registration(MVR)

Time Management

• Local, SNTP, NTP

Unicast Routing

• OSPFv2, RIPv1/v2, Static Route

QOS

• Support Queue Scheduling(WRR, WFQ, Strict Priority , Hybrid(WRR+SP or WFQ+SP); Priority Queue(8 queues/port); Class of Service(Port-based, 802. Ip,
• IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation ACL Type:
• L2/L3/L4, MAC-based, IPv4-based, IPv6-based,Diagnostic Maintenance Support port mirroring, Syslog, Ping

Security

• Broadcast Storm Control, HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA
• SSHvI/v2,Support DHCP Snooping, Option 43/82, 802. IX security access,
• Support user hierarchical management, ACL access control list,
• Support DOS, port-based MAC filtering/binding, MAC whitelist

MIB

• Ethernet-like MIB, ME-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON
• MIB(I ,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP.Com
• munity-MIB

Environmental

Operating Temperature

Operating Humidity

• (non-condensing)

Storage Temperature

-400C850C

Heat Dissipation

34 BTU/h

Cooling

Passive Cooling, Fanless Design

Noise Level:O dBA
