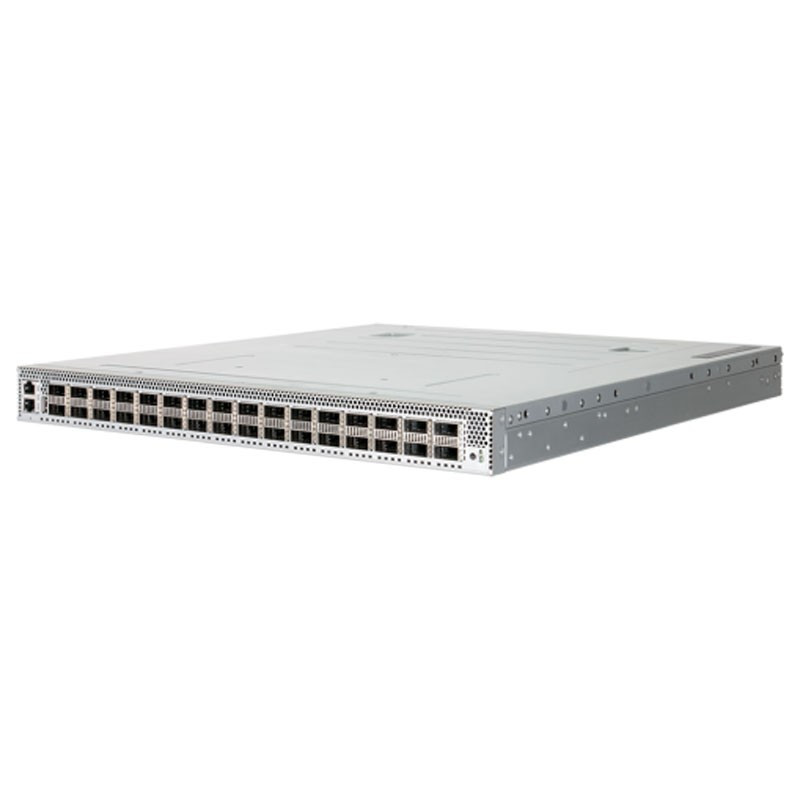

سويتش مركز البيانات DCS810 مع 32 منفذ 400G ماركة Edgecore
يکون محول Edgecore DCS810 محولاً لمركز البيانات قابل للبرمجة لمراكز البيانات واسعة النطاق. يوفر هذا المحول في عامل الشكل 1RU، اتصالات من الطبقة الثانية وتوجيه الطبقة الثالثة بمعدل خطيً وفحصًا عميقًا للحزم وموازنة تحميل حركة المرور وما إلى ذلك، ويدعم 32اتصال GbE 400 من خلال 32 منفذ QSFP-DD . یمكن استخدام DCS810 كمحول يوفر اتصالات GbE 25/50/100 للخوادم وأجهزة التوجيه وما إلى ذلك مع اتصالات المنبع GbE 100/400، أو كمحول أساسي يدعم اتصالات GbE 100/400.
یکون هذا المحول محولاً يتمتع بإمکانیة توصيل 32 منفذ QSFP-DD، كل منفذ من هذه المنافذ قادر على دعم اتصال GbE 400أو اتصال GbE 100 أو اتصال GbE 40. كذلک یمکن لهذه المنافذ دعم نقل البيانات علی أشکال مختلفة مثل 400 GbE إلی 4x 100GbE، GbE 100 إلی 4x 25GbE أو GbE 40 إلی 4x 10GbE عبر كابلات breakout ، ومع ذلك يتم استثناء كابل DAC من هذه المعادلات.
Key Features and Benefits
- Very high performance, open network switch infrastructure for data center fabric.
- Designed with programmable Tofino2 switch silicon from Intel.
- Deploys as a leaf or spine switch supporting 25/50/100 GbE to servers, with 100 or 400 GbE uplinks.
- Deploys as a spine switch supporting 100 or 400 GbE leaf and spine interconnects.
- 32 x QSFP-DD switch ports, each supporting 1x 400 GbE, 1x 100GbE, 1x 40GbE or via breakout cables 400GbE to 4 x 100GbE, 100GbE to 4x 25GbE or 40GbE to 4 x 10GbE.
- Layer 2 or Layer 3 forwarding of 12.8 Tbps (25.6Tbps full duplex).
- Supports port-to-power airflow direction.
- All ports on front; PSUs and fans accessible from rear.
- Hot-swappable, load-sharing, redundant AC power.
- 5+1 redundant, hot-swappable fan modules.
- Switch pre-loaded with diagnostics and Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
- Quad programmable packet processing pipelines with 20 Match Action Unit stages per pipe.
Interfaces
Models
Ports
- Switch Ports:
32 x QSFP-DD switch ports, each supporting 1 x 400 GbE,
1 x 100GbE, 1 x 40GbE or via breakout cables 400GbE to
4 x 100GbE, 100GbE to 4 x 25GbE or 40GbE to 4 x 10GbE (DAC
cable excluded)
- Management ports on port side:
1 x RJ-45 serial console
1 x RJ-45 1G BASE-T management
1 x USB Type A storage
Baseboard Management Controller (BMC) Aspeed AST1250A1-GP
- Supported Transceivers and Cables:
40GBASE-SR4
100GBASE-SR4/LR4/CWDM4
100G-DAC/AOC Cable
400GBASE-DR4/FR4
400G-DAC/AOC Cable
Key Components
- Switch Silicon: Intel Tofino2 BFN-T20-128Q (U series)
- CPU Modules:
Intel® Pentium® D-1517 4-Core 1.6GHz
8GB SO-DIMM
128GB M.2 SSD
Performance
- Switching Capacity: 12.8 Tbps (25.6 Tbps full duplex)
- Jumbo frames support up to 9216 Bytes
- Packet Buffer Size: 64 MB integrated packet buffer
Physical and Environmental
- Dimensions (WxDxH): 440 x 507 x 44 mm (17.32 x 19.97 x 1.73 inch)
- Weight: 10.005 kg (20.05 lb)
- Fans: 5+1 hot-swappable redundant fans
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 0% to 95% non-condensing
- Operating Altitude: 0 to 10,000 feet
Soſtware
- Switch is loaded with Open Network Install Environment (ONIE) soſtware installer
- Compatible with the following NOS options: open source options, plus commercial NOS offerings
LEDs
- QSFP-DD Port LEDs: Link Status, Activity, Rate
- Ethernet Management Port LED: Link Status, Activity
- System LEDs: Diagnostic, Locator, PSU and Fan Status
Power
- PSUs: 2 redundant, load-sharing, hot-swappable AC
- Input Voltage: 90 to 240 VAC at 50-60 Hz
Regulatory Compliance
- EMI
FCC
FCC 47 CFR Part 15 Subpart B Class A
CE
EN55022 Class A
EN55035
EN300 286
EN 61000-3-2
EN 61000-3-3
UKCA
BS EN 62368-1: 2014 + A11: 2017
VCCI
VCCI-32
BSMI
- Safety
UL/ CUL
UL, CSA
CB
IEC: EN-60950-1 & IEC 62368
- RoHS
Restriction of Hazardous Substances (RoHS) 6/6
China Restriction of Hazardous Substances (RoHS)
- Environmental:
Temperature: IEC 68-2-14
Vibration: IEC 68-2-36
IEC 68-2-6 Shock:
IEC 68-2-29 Drop: ISTA 2A
Acoustic Level: 75~89dBA
Data sheet content
تبديل جهاز التوجيه
- نوع التبديل
- مركز البيانات
- عدد المنافذ
- 32
- سرعة المنفذ
- 25G , 40G , 100G , 400G , 200G , 50G
- منافذ الوصلة الصاعدة
- 1 , 4 , 32
- سرعة منفذ الوصلة الصاعدة
- 100G , 400G , 200G
- نوع المنافذ
- QSFP-DD
- نوع منافذ الوصلة الصاعدة
- QSFP-DD
- Layer of switch
- Layer 2 , Layer 3
- نسخة IP
- IPV4 , IPV6
- تبديل استهلاك الطاقة
- 100~240 VAC
- قدرة التبديل
- 12.8T
- Redundant power and fan
- تصميم وحدات لإمدادات الطاقة والمروحة , hot swappable , التحكم في سرعة المروحة وكشف الإنذار
16 منتجات أخرى في نفس الفئة
Specifications
تبديل جهاز التوجيه | |
---|---|
نوع التبديل | مركز البيانات |
عدد المنافذ | 32 |
سرعة المنفذ | 25G, 40G, 100G, 400G, 200G, 50G |
منافذ الوصلة الصاعدة | 1, 4, 32 |
سرعة منفذ الوصلة الصاعدة | 100G, 400G, 200G |
نوع المنافذ | QSFP-DD |
نوع منافذ الوصلة الصاعدة | QSFP-DD |
Layer of switch | Layer 2, Layer 3 |
نسخة IP | IPV4, IPV6 |
تبديل استهلاك الطاقة | 100~240 VAC |
قدرة التبديل | 12.8T |
Redundant power and fan | تصميم وحدات لإمدادات الطاقة والمروحة, hot swappable, التحكم في سرعة المروحة وكشف الإنذار |
