4 منطقة HOU-WM6003 بوابة أمنية للكشف عن المعادن

یقدم كل منطقة كشف معلومات حول وجود المعدن في تلك المنطقة.

Function and characteristics:

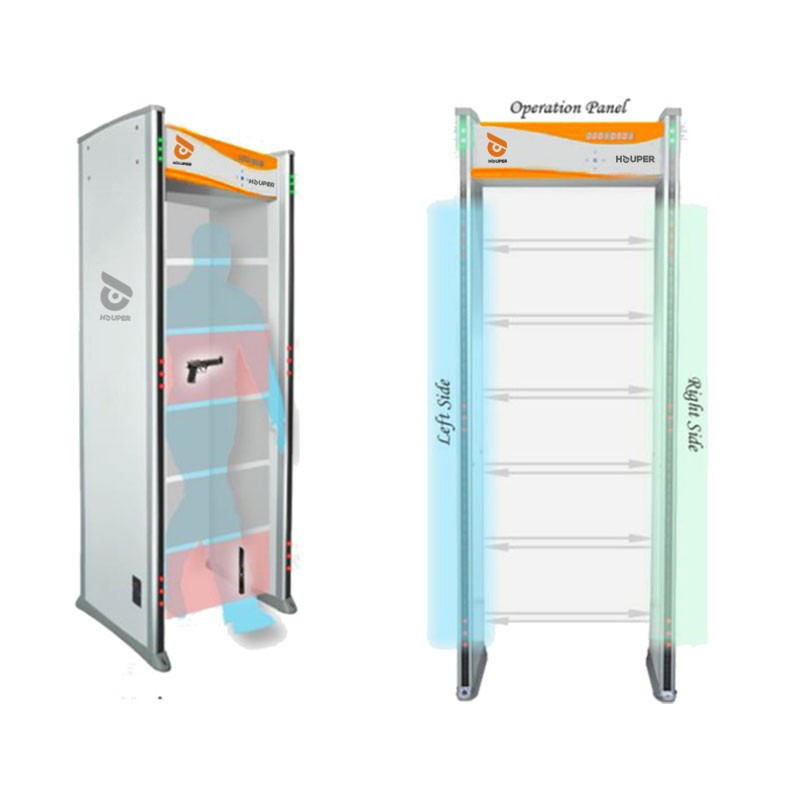

Six independent zones: Allocation of six mutual over-lapping detecting areas, accurately ascertain the location of the metal articles.

Alarm area indication: There is an instruction light in alarm area which equals to the height of a person on the right side of the gate,and equipped sound, it is so clear at first sight that rapidly promote work efficiency.

Adjustable area sensitive: The maximum sensitivity can detect such metal as small as a clip. Each detecting area has 255 sensitive gears, and can adjust sensitivity automatically, Predetermine the weight, volume, size and location of the metal article, Eliminate the false alarm caused by coins, keys, jewelries and leather bell buttons and so on.

Digital circuit: design prevents from missing alarm, and have strong anti-interference to outer surroundings, the rate of the false alarm is controlled within 1%.

Password protection: The gate is protected with password, only en-powered person permitted to operate.

Statistic function: Intellectual rate of flow of passer and alarm counter can calculate the number Of passer and alarm times.

Harmless to human body: Using sensitive metal detecting technology is harmless to heartbeat implement in human body, pregnant women, magnetic soft wares, tapes and video recording tapes.

Convenience in Installation: SUNLEADER series are systematic designs, need only 20 minutes to install or dismantle, and equip VCD training disk and operation instruction with the machine.

Main Advantages:

Applying most advanced digital detecting technology in the world, XINLIDAHONG metal detecting gate is for the detection of metal and alloy articles concealed in human body. It is highly safe, widely applicable and highly sensitive with a wide detecting range and a good anti-interference capability. It can work intellectually around the clock and give alarm both in sound and light simultaneously. The quality, effect and specifications are up-to-date in the world.The sensitivity of XINLIDAHONG digital metal detecting gate is adjustable. In the highest volume, articles as small as a paper clip can be detected and located. The user can configure the gate according to the size and weight of the article for detection to exclude err alarm for coins, keys, jewelries, belt buckles etc.

Application places:

It is applicable in the places such as factories, mines, banks, luxuries houses etc., where expensive metal articles may get lost easily; and places such as airport, customhouse, jails, exhibition halls, where dangerous metal articles are prohibited.

Features

• Economics style.
• Data metal detector door.
• Infrared technique.
• 6 independent zones

Specifications:

Technical specifications:

Electric current: 220V

Power:<30w

Outer frame: 2200mm(h)X830mm(w)X580mm(d)

Outer frame: 2010mm(h)X700mm(w)X580mm(d)

Weight: 70kg

Work environment: -20℃- +45℃

Complied standards: GB15210-94
