24 منطقة HOU-WM6008 بوابة أمنية للكشف عن المعادن

كلما زادت sensitivity، كانت الجهاز قادراً على التمييز بين الأجسام المعدنية الأصغر. يتم إجراء تقييمات لجهاز تنظيم ضربات القلب(pacemaker evaluations) من أجل التأكد من أن المجالات الكهرومغناطيسية لجهاز كشف المعادن لا تؤثر على أداء جهاز تنظيم ضربات القلب وعمره. كذلک يتم استخدام تقنية EMC في هذا الجهاز من أجل منع تداخل الإشارات الكهرومغناطيسية مع أداء الجهاز.

Products: with hard PVC materials and aluminum alloy frame, four-column via special process, make product exterior integrated, already beautiful and durable, waterproof, fire prevention function, achieve true can be used in outdoor.

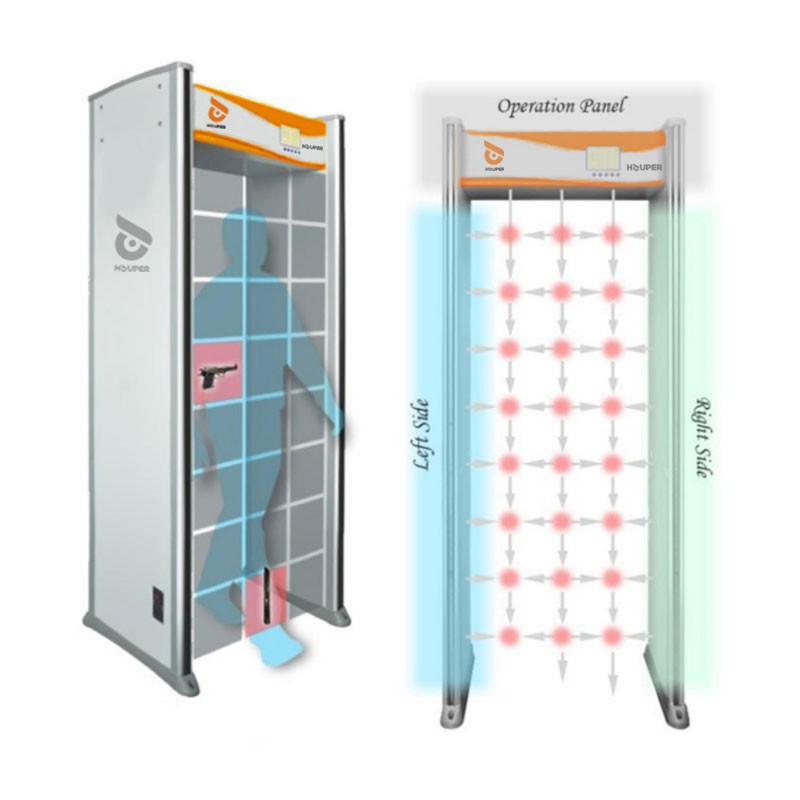

8 / 16 / 24 detection zone: 8 parts overlapping regional distribution, can detect location and alarm.

Display panel: choose high brightness LCD panel display through the number of parameters, and alarm.

Instructions: bilateral mast regional alarm lamp instructions, each alarm location flank built-in high brightness LED display lights, more intuitive body metal objects show where appropriate height.

Regional sensitivity adjustable: from 0-299 between sensitivity adjustment according to user requirements, the sensitivity of actual human carries out the jewelry, strap, metal zippers etc. The highest sensitivity to detect the size of the metal items. The paper clips

Strong anti-jamming capability: adopting digital balance technology, which can effectively prevent misstatement, omission, make whole swing door won't continue alarm.

Parameters adjustment methods: only by the remote parameter control regulation. Built-in intelligent chip, store a variety of sites recommend detection sensitivity setting value, including electronic, hardware, cable factory, airport security, stadium, entertainment, etc, make the parameters adjustment easier, more quickly.

Main Advantages:

Password protection: setting authorized management allows only authorized personnel password, operation, which can effectively prevent other personnel modification parameter.

Computer networking (OPTIONAL) : according to customer's requirement, also used a computer to control 8 sets of technical parameters of the door. Through the communication interface with lightning reserved the remote computer, monitor, statistical detection; Can use the camera shot selection, data can be alarm remote communication.

Other features: intelligent statistical personnel quantity and alarm through.

Power supply: the power in safety, high safety. Top host

Grid function: more parallel, 35CM only for the distance

Convenient installation: XLD series metal detector, convenient installation is combined with the design of the operating instructions, remove plain.

No harm to human body heart: the heart start, pregnant women, magnetic floppy disks, tapes harmless.

Application places:

Use in hardware factory, electronic factory in the loss of metal items, prison, court, exhibition, gym, recreation, etc safety inspection

Features

• 24 detection zones,
• LCD Display panel
• Camera shooting is optional

Technical parameters:

External power supply: 90V 250V 50-60Hz /

Power: 35W

Working environment: - 45 ° c - 20

All transportation 70kg

According to the working frequency installation environment, adjust themselves

The weight of the covenant: 75kg

Size (mm) : 2220 (high) x 700 (wide) x 510 (depth)

Specifications:

A pacemaker evaluations of the person that wear or other support system, pregnant women and magnetic

tapes, tapes, floppy disk medium such harmlessness

B with FAA "3 - gun - testing standards and NILECJ - 0601-00 all safety standards

C and electromagnetic compatibility with related electronic E.M.C. international standards and EC rules

D EN55011 interference with radio radiation, the FCC and VDE0875 standards

E product conforms to the standard of "GB15210-2003"
