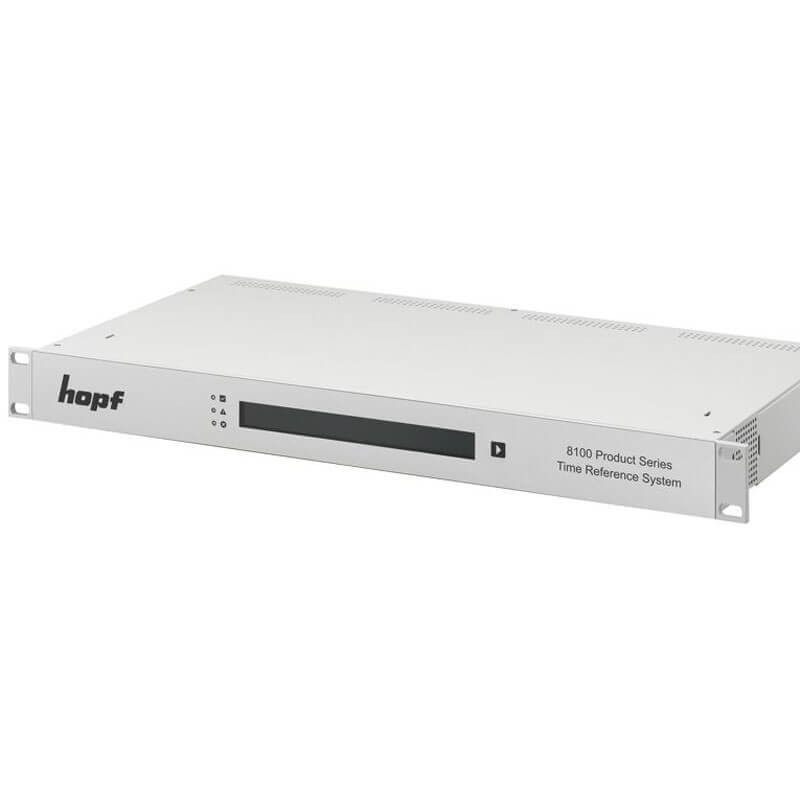

تایم سرور ماژولار 8100 هوپف آلمان
سری محصولات 8100 سیستمهای مرجع زمانی کاملاً مدولار هستند که از سیستمهای ماهوارهای ناوبری جهانی (GNSS) GPS، Galileo، GLONASS و BeiDou، و همچنین NTP، PTP و منابع زمانی مختلف دیگر برای همگامسازی زمانی دقیق و مطمئن با قیمتهای بسیار رقابتی پشتیبانی میکنند. به ویژه برای کاربردهای زیرساختی حیاتی مناسب هستند.
سیستمهای مرجع زمانی سری محصول 8100 برای کاربردهای حیاتی با الزامات بالا از نظر انعطافپذیری، در دسترس بودن، امنیت و پشتیبانی از طیف گستردهای از استانداردهای همگامسازی زمانی که معمولاً در زیرساختهای عمومی، فناوری راهآهن، ابزار برق، شبکه هوشمند دیجیتال اتوماسیون صنعتی و امکانات مرکز داده استفاده میشوند، طراحی شدهاند.
تایم سرور ماژولار 8100 هوپف آلمان
طراحی سیستم ماژولار دارای مدیریت آسان قطعات یدکی و حداقل میانگین زمان برای تعمیر (MTTR) است که همه قطعات / بردهای داخلی از قابلیت اتصال داغ پشتیبانی می کنند. اگر الزامات سیستم در آینده تغییر کند، ماژولار بودن سیستم همچنین امنیت سرمایه گذاری را تضمین می کند.
این سیستم از منابع تغذیه تکی و دوگانه / اضافی (PSU) برای اطمینان از دسترسی بیشتر پشتیبانی می کند. منبع تغذیه برای ولتاژهای ورودی DC 24VDC (18-36VDC)، 48VDC (36-76VDC)، VDC (60-160VDC)110، ولتاژهای ورودی DC با دامنه وسیع 19-75VDC و
ولتاژ ورودی با دامنه وسیع AC/DC 85 – 264VAC (50Hz / 60Hz) / 125 – 250VDC در دسترس هستند.
منبع تغذیه ولتاژ DC دارای ورودی های برق اضافی برای اتصال دو منبع تغذیه به یک منبع تغذیه است. در نسخه با منابع تغذیه اضافی، منابع تغذیه موجود را می توان در صورت نیاز ترکیب کرد.
حداکثر شش اسلات داخلی برای بردهای کنترل کننده دامنه زمان (ورودی سیگنال زمان از منبع زمانی)، بردهای ارائه دهنده خدمات زمان (خروجی سیگنال زمان / توزیع به برنامه مشتری) و بردهای مدیریت سیستم در دسترس است.
انواع تابلوهای ارائه دهنده خدمات زمانی برای موارد زیر موجود است:
• همگام سازی زمان شبکه با استفاده از پروتکل زمان شبکه (NTP / SNTP)، SIMATIC NET SINEC H1 Time Datagram یا IEEE 1588™-2019 Precision Time Protocol (PTP) با پشتیبانی از IEC 61850-9-3:2016 برای اتوماسیون برق و IEEE Std مشخصات قدرت C37.238™-2017
• خروجی سیگنال IRIG-B و DCF77 (دمودوله شده / مدوله شده)
• پالس چرخه ای قابل برنامه ریزی (PPS، PPM، PPH)
• دیتاگرام زمان سریال (مانند hopf Standard، IEC-103، ABB Melody / Freelance، Trimble TSIP، SAT1703 / SICAM RTU)
• توزیع سیگنال از طریق خروجی سیگنال الکتریکی یا فیبر نوری
کنترلکننده دامنه زمانی سری محصول 8100 دارای ارزیابی سیگنالهای زمانی از چندین سیستم ماهوارهای است که به صورت آزادانه برای GPS، Galileo، GLONASS و BeiDou قابل تنظیم هستند. در سطح گیرنده و فرم ویر، کنترلکننده دامنه زمان، بررسیهای سازگاری و تستهای آماری را بر روی ویژگیهایی مانند کنترل بهره خودکار (AGC)، خطای ساعت، کیفیت سیگنال، قدرت سیگنال، تاخیر انتشار و زاویه رسیدن به منظور محافظت بدون خطا اجرا میکند. ارزیابی سیگنال زمان بدون جهش در صورت از دست دادن سیگنال به دلیل خرابی آنتن یا شناسایی عدم تطابق سیگنال زمانی به دلیل پارازیت یا حملات جعل، ساعت کنترل کننده حوزه زمان به طور خودکار به نگهدارنده اسیلاتور یکپارچه سوئیچ می کند و دقت چرخش آزاد وابسته به نوسانگر را تضمین می کند. برای دسترسی بیشتر، پیکربندیهای کنترلکننده دامنه زمان اضافی پشتیبانی میشوند.
بردهای کنترل کننده دامنه زمان با کنترل کننده مدیریت یکپارچه و همچنین بردهای کنترل کننده مستقل مدیریت مستقل، پیکربندی و نظارت آسان را با استفاده از برنامه مدیریت یکپارچه hopf نسخه وب huma® که دارای دسترسی ایمن به سیستم از طریق یک رابط کاربری بصری برای استفاده از پیشرفته ترین رابط وب است، امکان پذیر می کند. تمام واحدهای قابل تعویض میدانی که در محفظه ادغام شده اند را می توان به صورت مرکزی پیکربندی کرد. تنظیمات سیستم ممکن است برای کل محوطه یا برای هر برد جداگانه ذخیره شود.
کنترل کننده مدیریت به طور مداوم وضعیت سلامت تمام بردها و قطعات یکپارچه را کنترل می کند. این داده های تشخیصی و آماری را برای گزارش رویداد یکپارچه و برای اطلاع رسانی به موقع رویدادهای مهم به سیستم های مدیریت فناوری اطلاعات خارجی با استفاده از پیام های ایمیل، تله های SNMP یا سرور خارجی SYSLOG جمع آوری می کند.
تقاضای فعلی برای همگرایی فناوریهای اطلاعات (IT) و فناوریهای عملیاتی (OT) در زیرساختهای حیاتی نیازمند تضمین امنیت و قابلیت اطمینان در انطباق با الزامات قانونی است. طراحی سیستم مدولار سری محصولات 8100 امکان جداسازی کامل شبکه عملیاتی / بهره وری (به عنوان مثال گذرگاه پردازش برای برنامه های کاربردی برق) را برای افزایش امنیت فراهم می کند در حالی که امکان دسترسی کامل به داده های تشخیصی و رویدادهای مهم برای مدیریت شبکه فناوری اطلاعات از طریق کنترل کننده مدیریت یکپارچه را فراهم می کند. کنترل دسترسی مبتنی بر نقش بر اساس به روزترین استانداردها، دسترسی ایمن به کنترل کننده مدیریت توسط کارکنان مجاز را تضمین می کند. ویژگی فایروال داخلی حتی با محدود کردن دسترسی به حداقل اتصالات و خدمات شبکه ضروری، امنیت بیشتری را در برابر نفوذهای مبتنی بر شبکه اضافه می کند. همه فایلهای پیکربندی و بستههای بهروزرسانی میانافزار ممکن است توسط گواهی امضا شوند تا از صحت و صلاحیت برای برنامه اطمینان حاصل شود.
8100 Product Series - Fully Modular Time Reference Systems
The 8100 product series are fully modular time reference systems that support the Global Navigation Satellite Systems (GNSS) GPS, Galileo, GLONASS and BeiDou, as well as NTP, PTP and various other time sources for precise and reliable time synchronization at extremely competitive prices and are particularly well suited for critical infrastructure applications.
The 8100 product series time reference systems have been designed for mission critical applications with high requirements in terms of flexibility, availability, security and the support of a wide variety of time synchronization standards commonly used in public infrastructure, railway technology, power utility, digital smart grid, industry automation and data center facilities.
The modular system design features easy spare part management and minimum mean time to repair (MTTR) with all parts / extension boards supporting hot-plug capability. The modularity of the system also ensures security of investment if the requirements for the system should change in the future.
The system supports both single and dual / redundant power supplies (PSU) to ensure higher availability. Power supplies are available for DC input voltages 24VDC (18 – 36VDC), 48VDC (36 – 76VDC), 110VDC (60 – 160VDC), wide range DC input voltages 19 – 75VDC and wide range AC/DC input voltages 85 – 264VAC (50Hz / 60Hz) / 125 – 250VDC. The DC voltage power supplies feature redundant power inputs for connection of two power sources to a single power supply. In the version with redundant power supplies, the available power supplies can be combined as required.
Up to six extension slots are available for time domain controller boards (time signal input from time source), time service provider boards (time signal output / distribution to customer application), and system management boards.
A variety of time service provider boards is available for, among others:
Network time synchronization using Network Time Protocol (NTP / SNTP), SIMATIC NET SINEC H1 Time Datagram or IEEE 1588™-2019 Precision Time Protocol (PTP) with support for IEC 61850-9-3:2016 profile for power utility automation and IEEE Std C37.238™-2017 power profile
IRIG-B and DCF77 signal output (demodulated / modulated)
Programmable cyclic pulse (PPS, PPM, PPH)
Serial time datagram (e. g. hopf Standard, IEC-103, ABB Melody / Freelance, Trimble TSIP, SAT1703 / SICAM RTU)
Signal distribution via electrical or fiber-optic signal output
The 8100 product series time domain controller features evaluation of time signals from multiple satellite systems freely configurable for GPS, Galileo, GLONASS and BeiDou. On receiver and firmware level the time domain controller implements consistency checks and statistical tests on features such as automatic gain control (AGC), clock error, signal quality, signal power, propagation delay and the angle of arrival in order to safeguard error-free and leap-free time signal evaluation. In case of signal loss due to antenna failure or identification of time signal mismatch due to jamming or spoofing attacks the time domain controller clock automatically switches to the integrated oscillator holdover ensuring the oscillator dependent freewheeling accuracy. For enhanced availability redundant time domain controller configurations are supported.
Time domain controller boards with integrated management controller as well as standalone independent management controller boards allow easy configuration and monitoring using the hopf unified management application huma® web edition which features secure access to the system via an intuitive to use state-of-the-art web interface. All field replaceable units integrated into the enclosure can be centrally configured. System configurations may be saved for the whole enclosure or for each individual board separately.
The management controller continuously monitors the health status of all integrated boards and components. It collects diagnostic and statistical data for the integrated event log and for real time notification of critical events to external IT management systems using email messaging, SNMP traps or external SYSLOG server.
The current demand for the convergence of Information Technologies (IT) and Operational Technologies (OT) in critical infrastructure requires to ensure security and reliability in compliance with regulatory requirements. The modular system design of the 8100 product series allows complete separation of operational / productivity network (e.g. process bus for power utility applications) for enhanced security while allowing complete access to diagnostic data and critical events for the IT network management via the integrated management controller. Role based access control according to the most up-to-date standards safeguards secure access to the management controller by authorized staff. The built-in firewall feature adds even increased security against network-based intrusions by limiting access to the minimum necessary network connections and services. All configuration files and firmware update packages may be signed by certificates to ensure authenticity and eligibility for application.
محتوای دیتاشیت
Time server
- تکنولوژی تایم سرور
- GPS , GPS/GNSS
- منابع تغذیه
- 24VDC (18 – 36VDC) , 48VDC (36 – 76VDC) , 110VDC (60 – 160VDC) , 300VDC (200 – 400VDC) , 85 – 264VAC (50Hz / 60Hz) , 125 – 250VDC , 24VDC (18 – 36VDC) , 48VDC (36 – 76VDC) , 110VDC (60 – 160VDC) , 300VDC (200 – 400VDC) and wide range AC/DC input voltages 85 – 264VAC (50Hz / 60Hz) / 125 – 250VDC
- ویژگی منابع تغذیه
- redundant power inputs for connection of two power sources , redundant power inputs for connection of one power sources , single power supply , DC voltage redundant power inputs
- اسلات های افزونه
- six extension slots
- پروتکل زمان شبکه
- (NTP / SNTP) , PTP , IRIG-B , DCF77 , PPS , PPM , PPH , Serial time datagram , TSIP , SAT1703 / SICAM RTU , fiber-optic signal output , RTP , NTP / SNTP , SIMATIC NET SINEC H1 , IEEE 1588™ , PTP , IEC 61850-9-3:2016 , IEEE Std C37.238™-2017 , IRIG-B , DCF77 (demodulated / modulated) , PPS , PPM , PPH , Serial time datagram , IEC-103 , ABB Melody , Trimble TSIP , SAT1703 / SICAM RTU , fiber-optic signal output
- نوسان ساز
- OCXO , TCXO , OCXO HPFS , OCXO HPFS , TCXO , OCXO
- روش نصب
- 1U fully modular subrack for 19-inch rack mounting
- نوع اجزاء
- hot-plug , Normal - without hot-plug
16 محصول دیگر در همین دسته
تایم سرور System 7001(RC)-Slave هوپف آلمان
تقسیم کننده آنتن GPS غیرفعال HOPF 4443
آنتن کوچک GPS 4491 هوپف آلمان
تایم سرور زمان6844 هوپف
اسپلیتر آنتن GPS فعال 4449 هوپف آلمان
تایم سرور 8030HEPTA
تقویت کننده GPS تایم سرور هوپف آلمان 6849
ماژول تایم سرور دین ریل DIN 8024GPS هوپف
Switch Box System 5000 - ساعت مرکزی
مشخصات فنی
Time server | |
---|---|
تکنولوژی تایم سرور | GPS, GPS/GNSS |
منابع تغذیه | 24VDC (18 – 36VDC), 48VDC (36 – 76VDC), 110VDC (60 – 160VDC), 300VDC (200 – 400VDC), 85 – 264VAC (50Hz / 60Hz), 125 – 250VDC, 24VDC (18 – 36VDC), 48VDC (36 – 76VDC), 110VDC (60 – 160VDC), 300VDC (200 – 400VDC) and wide range AC/DC input voltages 85 – 264VAC (50Hz / 60Hz) / 125 – 250VDC |
ویژگی منابع تغذیه | redundant power inputs for connection of two power sources, redundant power inputs for connection of one power sources, single power supply, DC voltage redundant power inputs |
اسلات های افزونه | six extension slots |
پروتکل زمان شبکه | (NTP / SNTP), PTP, IRIG-B, DCF77, PPS, PPM, PPH, Serial time datagram, TSIP, SAT1703 / SICAM RTU, fiber-optic signal output, RTP, NTP / SNTP, SIMATIC NET SINEC H1, IEEE 1588™, PTP, IEC 61850-9-3:2016 , IEEE Std C37.238™-2017 , IRIG-B , DCF77 (demodulated / modulated), PPS, PPM, PPH , Serial time datagram, IEC-103, ABB Melody , Trimble TSIP, SAT1703 / SICAM RTU, fiber-optic signal output |
نوسان ساز | OCXO, TCXO, OCXO HPFS, OCXO HPFS, TCXO, OCXO |
روش نصب | 1U fully modular subrack for 19-inch rack mounting |
نوع اجزاء | hot-plug, Normal - without hot-plug |
