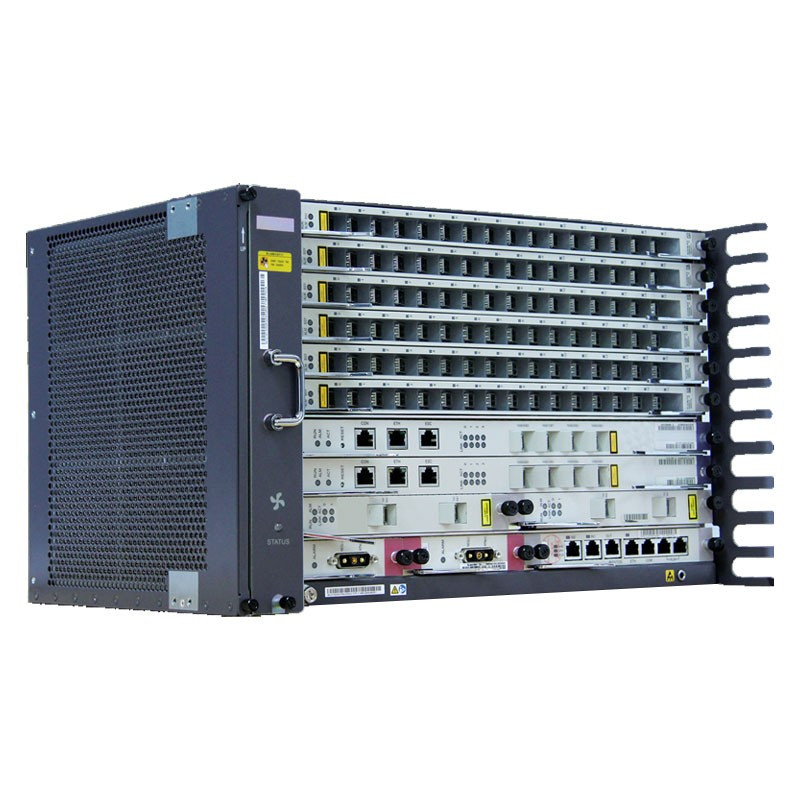

OLT هواوي SmartAX MA5603T

MA5603T

442×283.2×263 (W/D/H) mm
Indoor: N66E-18
Outdoor: F01D500, F01S300

Configuration
control board: 2
Service board: 6
Universal Interface board: 1
Upstream interface board: 2
Power interface board: 2

MTBF
≈45 years

Switching Capacity of the Backplane Bus
1.5Tbit/s (H801MABO) 2Tbit/s (H802MABO)
Switching Capacity of
the Control Board
MCUD/MCUD1: 128Gbit/s (Standby
mode), 256Gbit/s (Load-sharing mode)

Access Capacity

• 48*10G GPON
• 96*GPON
• 288*GE

Maximum uplink port
(GIU)

• 4*GE
• 4*10GE

The Huawei SmartAX 5600T provide these features:

Convergence and access integration

• Provides super large convergence switching capacity. Specifically, an MA5600T series device supports 3.2 Tbit/s backplane capacity, 1,920 Gbit/s switching capacity, and 512,000 MAC addresses.

• Provides super high-density cascading capability. Specifcally, an MA5600T series device supports a maximum of 46 x 10GE or 768 GE services, with no additional convergence switches.

High reliability

• Provides highly reliable networking capabilities and ensures dual-OLT hot backup, remote disaster tolerance, and service upgrades without interruption.

• Provides comprehensive Quality of Service (QoS) functions and supports traffic classification management, priority control, and bandwidth control. The Hierarchical-Quality of Service (H-QoS) function meets various Service Level Agreement (SLA) requirements of commercial customers.

• Provides an End-to-End (E2E) highly reliable design, enabling Bidirectional Forwarding Detection (BFD), Smart Link, Link Aggregation Control Protocol (LACP) redundancy protection and GPON type B/type C line protection in the upstream direction.

Multi-scenario access

• Supports access of multiple E1 private line services, and Native Time-Division Multiplexing (TDM) or Circuit Emulation Services over Packet (CESoP)/ Structure-Agnostic TDM over Packet (SAToP) function.

• Supports the Emulated Local Area Network (ELAN) function and Virtual Local Area Network (VLAN)-based internal traffic exchange, satisfying enterprise and community network application requirements.

• Supports non-convergence access of Internet Protocol television (IPTV) users. One subrack supports 8,000 multicast users and 4,000 multicast channels.

Smooth evolution

• Supports GPON, 10G Passive Optical Network (PON), and 40G PON on a platform, enabling smooth evolution and achieving ultra-bandwidth access.

• Supports IPv4/IPv6 dual stacks and IPv6 multicast, enabling smooth evolution from IPv4 to IPv6.

Energy saving

• Uses special chips for conserving power. Specifcally, 16 ports on a GPON board consume less than 73 W of power.

• Supports idle board automatic power-off and intelligent fan speed adjustment, effectively lowering idle board power consumption.
