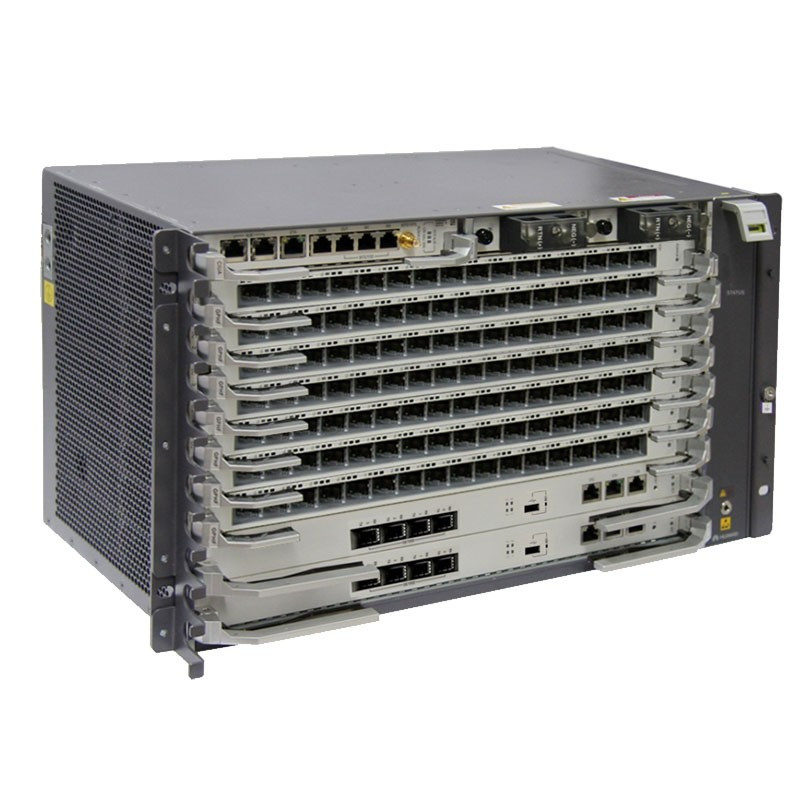

OLT هواوي Huawei SmartAX MA5800 X7

Huawei MA5800 X7 16GPON C+ bundle equipped with 2xMPLA, 2xPILA, 1xGPHF C+ SFP Module

1+1 MPLA equipped, switching capacity 7 Tbit/s, 100 Gbit/s slot bandwidth
1+1 PILA equipped, redundance -48V DC power
1 PCS GPHF 16-Port GPON OLT Interface Board with 16 C+ SFP Module
1 Slots Occupied, 6 Slots Remain
2 power cable, 1 earth cable, 1 accessory package

112 x GPON/EPON
336 x GE/FE
56 x 10G GPON/10G EPON
56 x 10G GE
224 x E1

The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent

-38.4V DC to -72V DC
Layer 2 Features : VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features : Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3 : MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6:IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast: IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
QoS:Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
System Reliability: GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control

Huawei SmartAX MA5800 X7 OLT Product Features


Huawei MA5800-X7 uses PON/P2P to realize unified access and convergence of any media of optical fiber, copper wire and cable, and evolve the independent access network of multiple media into a unified access network to achieve unified access, convergence and management , Simplify network architecture and operation and maintenance.

Support PON/P2P full service access, one optical network supports full scene access such as home, enterprise, and mobile backhaul.

The functions of OLT and aggregation switches are integrated to simplify the network hierarchy, reduce space and energy consumption, and reduce OPEX.

The service board adopts programmable NP architecture, supports SDN-based intelligent services, and supports rapid deployment of new services.

Support virtual access network function, realize multi-service intelligent operation or develop network wholesale business, and provide better business experience.

The MA5800-X7 service frame provides 12 slots, including 2 main control board slots, 2 power supply board slots, 1 general interface board slot, and 7 service board slots.

The backplane supported by the MA5800-X7 service frame is H901BPMB.

The fan frame of the Huawei MA5800-X7 business frame is equipped with 6 fans and the H901FMMA fan monitoring board, which has the functions of heat dissipation, monitoring, and speed regulation to ensure that the device works at a stable temperature.
