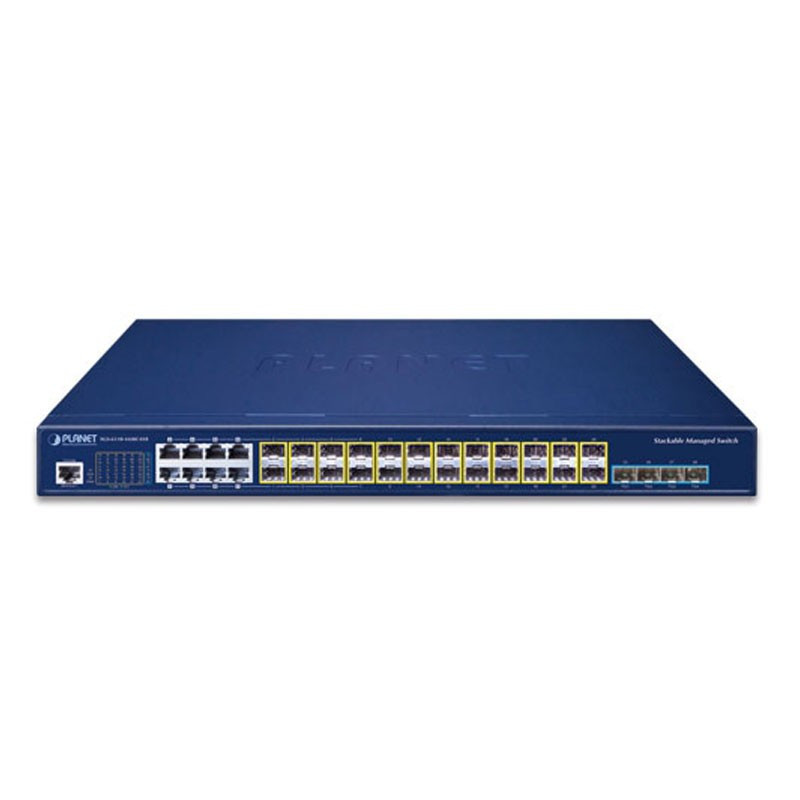

مفتاح صناعي Planet SGS-6310 series

The hardware specifications of these models are shown below:

The four to six SFP+ ports built in the SGS-6310 series boast a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire- speed throughput as high as up to 120Gbps, which greatly meets high bandwidth demands in the LAN. Each of the SFP+ ports supports Dual-Speed, 10GBASE- SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

The SGS-6310 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.

The SGS-6310 series can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port link aggregation, the SGS-6310 series allows the operation of a high-speed trunk combined with multiple ports. It enables up to 64 groups for trunking with a maximum of 8 ports for each group.

The SGS-6310 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.

Stacking Features

• Hardware Stacking

– Virtualized multiple SGS-6310 series stacked into one logical facility

– Connects with stack members via assigned 10G SFP+ interfaces

– Single IP address stack management, supporting up to 8 hardware units stacked together

– Stacking architecture supports redundant Ring mode

IP Routing Features

• IPv4 routing protocol supports RIPv1/v2 and OSPFv2
• IPv6 routing protocol supports RIPng and OSPFv3
• Routing interface provides per VLAN routing mode
• VRRPv1/v3 protocol for redundant routing deployment
• Supports route redistribution
• Supports hardware-based wire-speed VLAN routing

Multicast Routing Features

• Supports IPv4 IGMP v1/v2/v3, IGMP Snooping.
• Supports IGMP Fast Leave, MVR, IGMP filter
• Supports IPv6 MLD V1, MLD snooping

Layer 2 Features

• 16K MAC address table, automatic source address learning and aging
• Supports VLAN

– IEEE 802.1Q tag-based VLAN

– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported

– GVRP protocol for dynamic VLAN management

– Private VLAN Edge (PVE) supported

– MAC-based VLAN

– IP subnet-based VLAN

– Voice VLAN

• Supports Link Aggregation

– IEEE 802.3ad LACP (Link Aggregation Control Protocol)

– Static mode and LACP mode

– Maximum 64 trunk groups, up to 8 ports per trunk group

• Supports Spanning Tree Protocol

– STP, IEEE 802.1D (Classic Spanning Tree Protocol)

– RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)

– MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN
