يحتوي هذا المحول في قسم الطاقة، على مصدري طاقة AC القابلين للاستبدال، وکذلک إمكانية توزیع الحمل ونقل الحرارة. يعمل مدخل AC لهذا المحول في نطاق 100 إلى 240 فلط بتردد 50-60 هرتز، مما يوفر إمكانية استخدامه في ظروف جغرافية مختلفة.
Key Features and Benefits

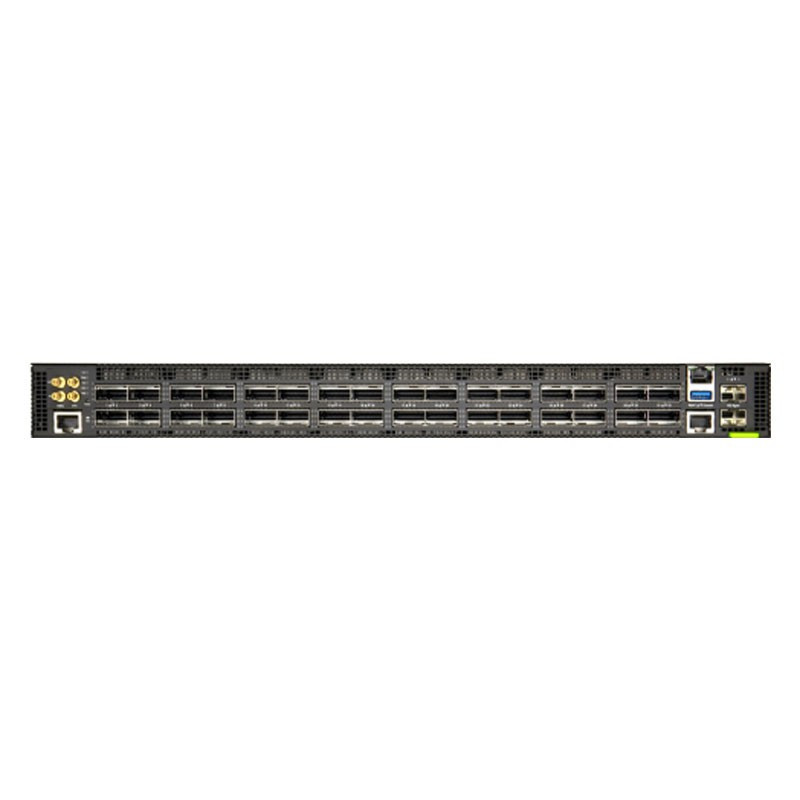

- 32 x QSFP-DD switch ports, each supporting 1 x 400 GbE or 1 x 100 GbE, or via breakout cables 4 x 100 GbE or 4 x 25 GbE.
- Incorporates Broadcom Tomahawk 3 switch series silicon.
- 1 RU form factor.
- Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.
- All ports on front; PSUs and fans accessible from rear.
- Hot-swappable, load-sharing, redundant 1300 W PSUs.
- 5+1 redundant, hot-swappable fan modules.
- Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
Interfaces
Models
Ports
Switch ports: 32 x QSFP-DD 400 GbE
Management ports on port side:
1 x RJ-45 serial console
1 x RJ-45 1000BASE-T management
2 x SFP+ 10G management
Supported Transceivers and Cables:
40GBASE-SR4/LR4
40G-DAC cable
100GBASE-SR4/CWDM4/LR4
100G-DAC/AOC cable
400GBASE-SR8/DR4/FR4
400G-DAC/AOC cable
Key Componets
Switch silicon: BCM56980 Tomahawk 3
CPU modules:
Intel® Xeon® Processor D-1518 4-Core
DDR4: 8 GB x 2 SO-DIMM
SPI Flash: 16 MB x 2
m.2 SSD: 50G MLC x 1
Performance
Switching Capability: 12.8 Tbps full duplex
Forwarding Rate: 5.21 Bpps
Jumbo frames support up to 9 Kbytes
Packet Buffer Zize: 64 MB integrated packet buffer
Subject to NOS:
MAC Addresses: 8 K
VLAN IDs: 4 K
L3 Host
IPv4 UC: 16 K
IPv4 MC: 8 K
IPv6 UC: 8 K
IPv6 MC: 4 K
Physical and Environmental
Dimensions (WxDxH): 43.84 x 53.6 x 4.31 cm (17.25 x 21.1 x 1.69 in)
Weight: 11.06 kg (24.38 lb)
Fans: Hot-swappable 5 + 1 redundant fans
Storage Temperature: -40°C to 70°C ( -40°F to 158°F)
Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
Operating Humidity: 5% ~ 95% non-condensing
System and Port LEDs
QSFP-DD Port LEDs: Blue (400G), White (200G), Green (100G),
Green (50G)
Management Port LED: Green: (10 G), Flashing: Activity
System LEDs: PSU1, PSU2, Fan, Diag, and Loc
Reset button
Soſtware
Switch is loaded with Open Network Install Environment (ONIE)
soſtware installer
Compatible with the following NOS options: open source
options, plus commercial NOS offerings.
Power
PSUs: 2 redundant, load-sharing, hot-swappable AC
AC Input Range: 100~240 VAC at 50-60 Hz VAC
Regulatory
EMI
CE Mark
EN55032
CISPR 32
AS/NZS CISPR 32
EN55024
CISPR 24
CISPR 35
EN 61000-3-3
EN 61000-3-2
FCC Title 47, Part 15, Subpart B Class A
VCCI Class A
CCC
Safety
CB
EN60950, UL60950
EN62368, UL62368
Environmental:
GR63-CORE (Pre-test)
RoHS-2.0 Compliant
Electrical and Electronic Equipment (WEEE Directive 2002/96/EC)
